200GETO (2002)
POWER TRIM & TILT ASSY 2

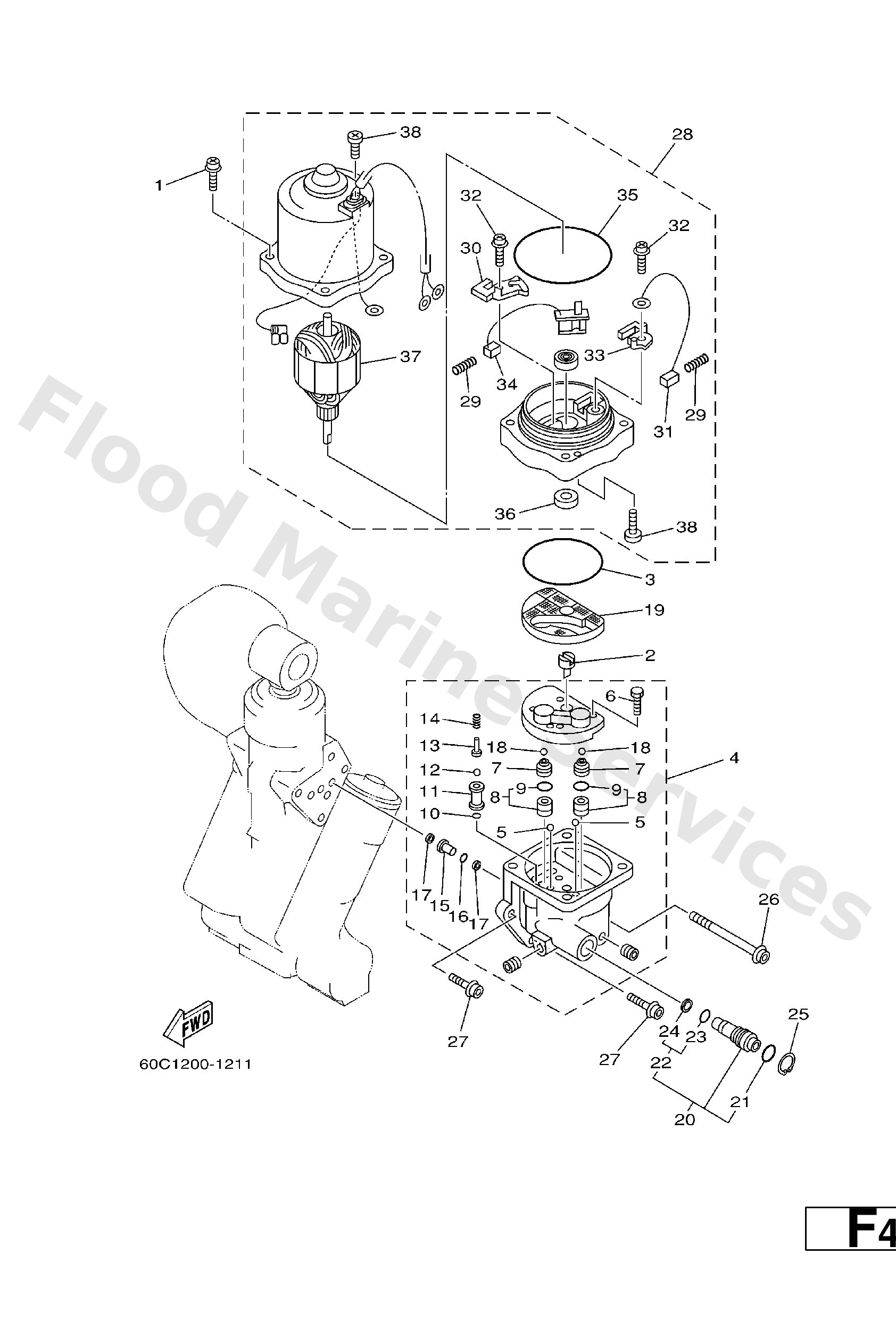

Diagram: POWER TRIM & TILT ASSY 2
Parts List
Reference
Description
Price
1
64E--4388E--10
Bolt ,screw (l:34.7mm)
Loading…
↗
2
64E--43831--00
Connector, shaft
Loading…
↗
3
64E--43868--00
O-ring 8
Loading…
↗
4
64E--43830--00
Gear pump assembly
Loading…
↗
5
72X--43858--00
Ball
Loading…
↗
6
64E--43843--00
Screw, valve lock
Loading…
↗
7
64E--43841--00
Piston, shuttle
Loading…
↗
8
64E--43802--00
Valve sub assembly
Loading…
↗
9
6E5--43896--00
O-ring
Loading…
↗
10
6G5--43863--00
O-ring 3
Loading…
↗
11
64E--43851--00
Seat, Relief Valve
Loading…
↗
12
64E--43858--00
Ball
Loading…
↗
13
64E--43859--00
20 −
Loading…
↗
14
64E--43855--00
Spring, up relief
Loading…
↗
15
64E--43850--00
Valve sub assembly
Loading…
↗
16
64E--43865--00
O-ring 10
Loading…
↗
17
64E--43816--00
Filter 1
Loading…
↗
19
64E--43817--10
Filter 2
Loading…
↗
20
64E--43860--00
Manual valve sub-assembly
Loading…
↗
21
72X--85075--L0
O-ring (nsd161)
Loading…
↗
22
64E--43827--00
Ring set
Loading…
↗
23
64E--4387A--00
O-ring
Loading…
↗
24
64E--43873--00
Ring, back up
Loading…
↗
25
64E--43875--00
Ring, snap
Loading…
↗
26
64E--43879--10
Screw, with washer
Loading…
↗
27
64E--43879--00
Screw, with washer
Loading…
↗
28
64E--43880--01
Motor assembly
Loading…
↗
29
6H1--4386K--10
Spring, brush
Loading…
↗
30
64E--4380J--00
Holder, Brush
Loading…
↗
31
64E--43891--00
Brush 1
Loading…
↗
32
97607--04310
Screw, pan head(6g8)
Loading…
↗
33
64E--4380F--00
Holder, brush 2
Loading…
↗
34
64E--43892--00
Breaker comp. (brush 2)
Loading…
↗
35
6G5--43865--00
O-ring
Loading…
↗
36
93102--08M43
Oil seal(6b0)
Loading…
↗
37
64E--43805--00
Armature assembly
Loading…
↗
38
64E--43843--10
Screw valve lock
Loading…
↗
