F100DET (2010)
POWER TRIM & TILT ASSY 2

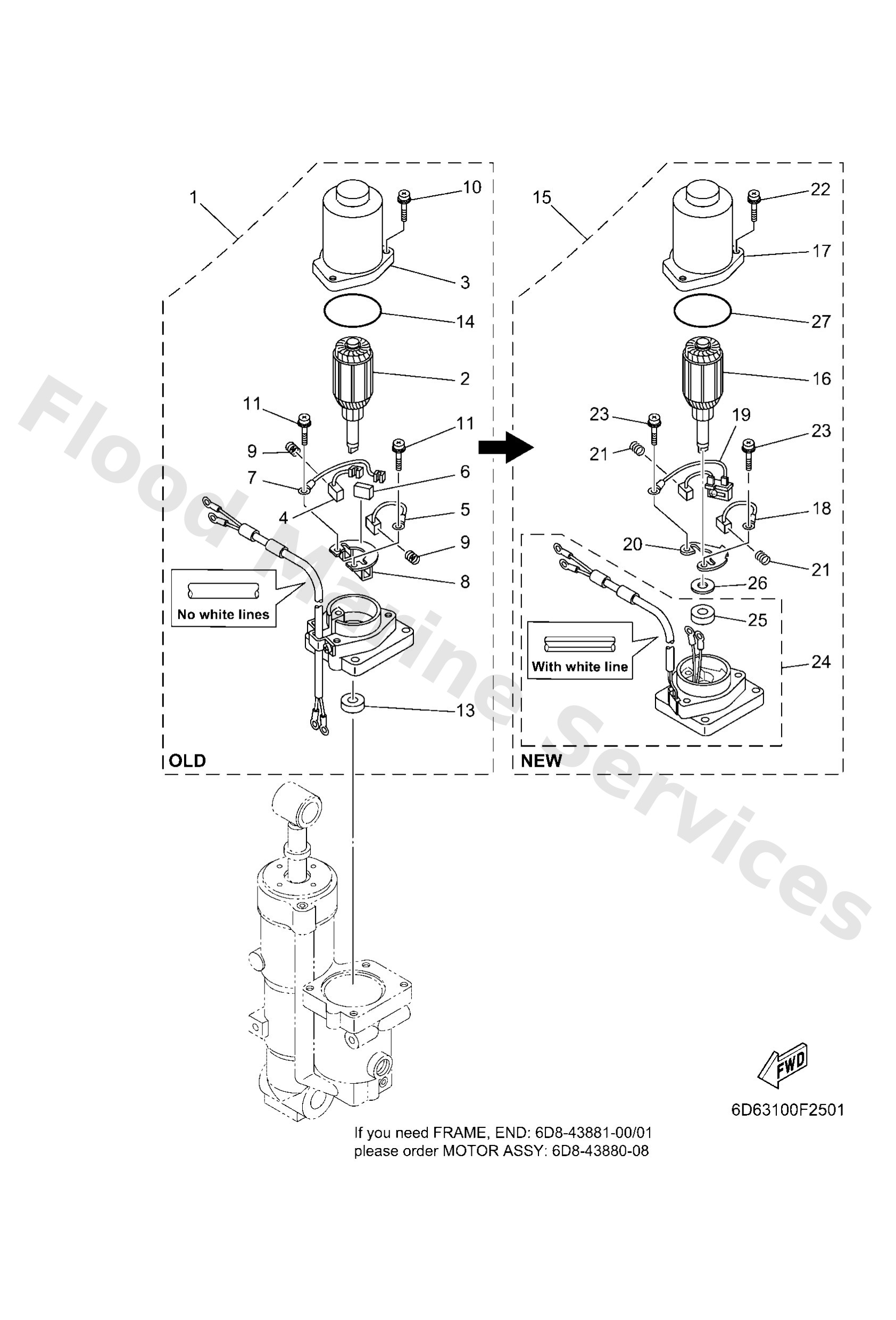

Diagram: POWER TRIM & TILT ASSY 2
Parts List
Reference
Description
Price
1
6D84388001
Motor assembly (with connector)
Loading…
↗
2
6D84380501
Armature assembly
Loading…
↗
3
6D84380401
Stator assembly
Loading…
↗
4
6H14389111
Brush 1
Loading…
↗
5
6H14389211
Brush 2
Loading…
↗
6
6H18218110
Circuit breaker comp.
Loading…
↗
7
62X4380700
Wire sub assembly
Loading…
↗
8
6H14380F11
Plate, brush holder
Loading…
↗
9
62X4386K00
Spring, brush
Loading…
↗
10
9798005225
Screw, with washer
Loading…
↗
11
9760204216
Screw, pan head with washer
Loading…
↗
13
9310208414
Oil seal(61a)
Loading…
↗
14
93210554A9
O-ring
Loading…
↗
15
6D84388008
Motor assembly (with connector)
Loading…
↗
16
6D84380502
Armature assembly
Loading…
↗
17
6EK4380411
Stator assembly
Loading…
↗
18
6EK4389200
Brush 2
Loading…
↗
19
63P8218120
Circuit breaker comp.
Loading…
↗
20
6EK4380F00
Plate, brush holder
Loading…
↗
22
63P4387910
Screw, with washer
Loading…
↗
23
9760204316
Screw, pan head with washer
Loading…
↗
24
6D84388109
Frame, End
Loading…
↗
25
6LH4388200
Oil seal
Loading…
↗
26
9020614086
Washer, wave(6t4)
Loading…
↗
27
6EK4386201
O-ring
Loading…
↗
