F130AET (2020)
POWER TRIM & TILT ASSY 2

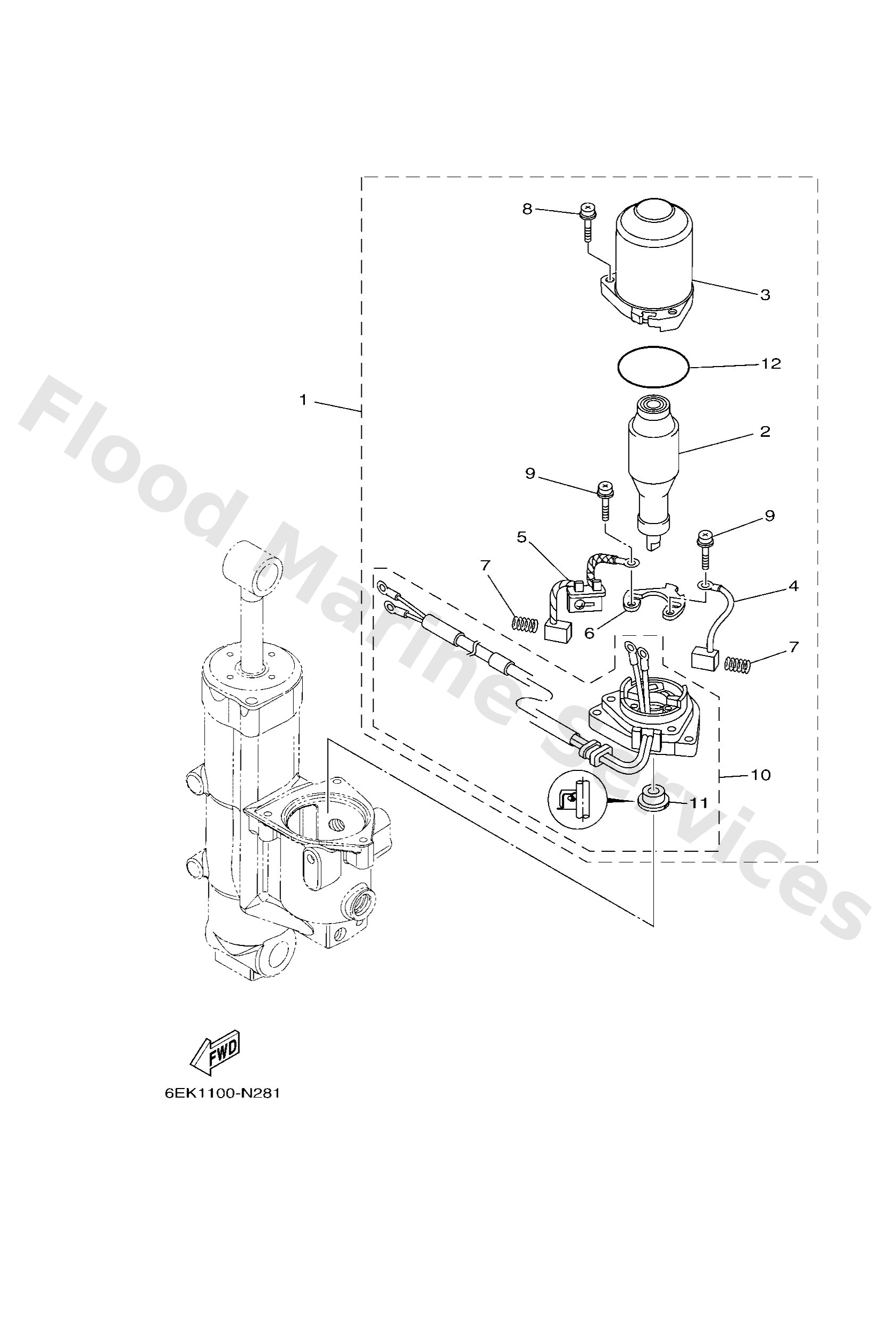

Diagram: POWER TRIM & TILT ASSY 2
Parts List
Reference
Description
Price
1
6EK4388011
Motor assembly
Loading…
↗
2
6EK4380501
Armature assembly
Loading…
↗
3
6EK4380411
Stator assembly
Loading…
↗
4
6EK4389200
Brush 2
Loading…
↗
5
6EK8218100
Circuit breaker comp.
Loading…
↗
6
6EK4380F00
Plate, brush holder
Loading…
↗
7
62X4386K00
Spring, brush
Loading…
↗
8
63P4387910
Screw, with washer
Loading…
↗
9
9760204316
Screw, pan head with washer
Loading…
↗
10
6EK4388111
Frame, end
Loading…
↗
11
6EK4388200
Oil seal
Loading…
↗
12
93210554A9
O-ring
Loading…
↗
