F150AET (2004)
POWER TRIM & TILT ASSY 2

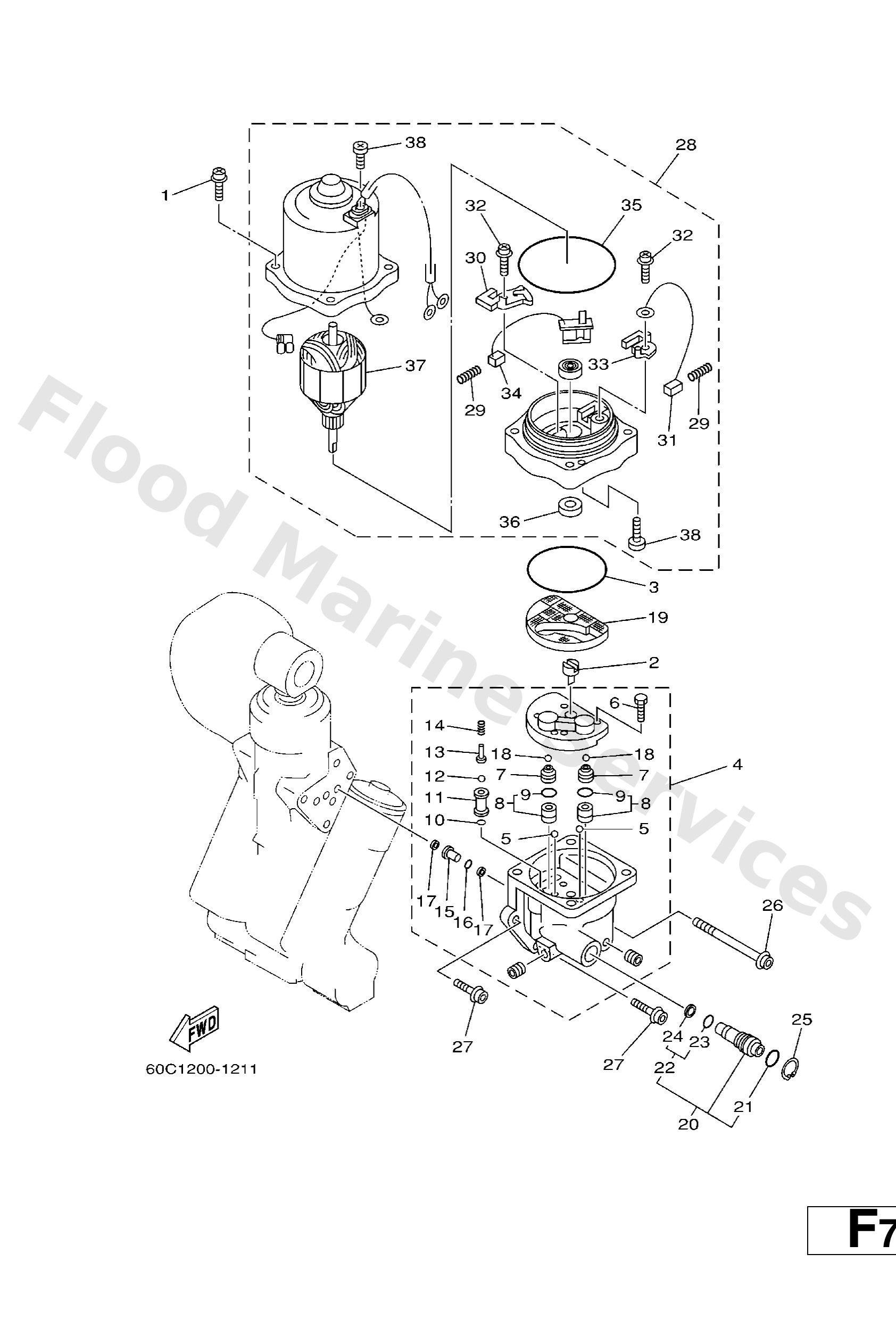

Diagram: POWER TRIM & TILT ASSY 2
Parts List
Reference
Description
Price
1
64E4388E10
Bolt ,screw (l:34.7mm)
Loading…
↗
2
64E4383100
Connector, shaft
Loading…
↗
3
64E4386800
O-ring 8
Loading…
↗
4
64E4383000
Gear pump assembly
Loading…
↗
5
72X4385800
Ball
Loading…
↗
6
64E4384300
Screw, valve lock
Loading…
↗
7
64E4384100
Piston, shuttle
Loading…
↗
8
64E4380200
Valve sub assembly
Loading…
↗
9
6E54389600
O-ring
Loading…
↗
10
6G54386300
O-ring 3
Loading…
↗
11
64E4385100
-
Loading…
↗
12
64E4385800
Ball
Loading…
↗
13
64E4385900
-
Loading…
↗
14
64E4385500
Spring, up relief
Loading…
↗
15
64E4385000
Valve sub assembly
Loading…
↗
16
64E4386500
O-ring 10
Loading…
↗
17
64E4381600
Filter 1
Loading…
↗
19
64E4381710
Filter 2
Loading…
↗
20
64E4386000
Manual valve sub-assembly
Loading…
↗
21
72X85075L0
O-ring (nsd161)
Loading…
↗
22
64E4382700
Ring set
Loading…
↗
23
64E4387A00
O-ring
Loading…
↗
24
64E4387300
Ring, back up
Loading…
↗
25
64E4387500
Ring, snap
Loading…
↗
26
64E4387910
Screw, with washer
Loading…
↗
27
64E4387900
Screw, with washer
Loading…
↗
28
67H4388001
Motor assembly
Loading…
↗
29
6H14386K10
Spring, brush
Loading…
↗
30
64E4380J00
Holder, Brush
Loading…
↗
31
64E4389100
Brush 1
Loading…
↗
32
9760704310
Screw, pan head(6g8)
Loading…
↗
33
64E4380F00
Holder, brush 2
Loading…
↗
34
64E4389200
Breaker comp. (brush 2)
Loading…
↗
35
6G54386500
O-ring
Loading…
↗
36
9310208M43
Oil seal(6b0)
Loading…
↗
37
64E4380500
Armature assembly
Loading…
↗
38
64E4384310
Screw valve lock
Loading…
↗
