F300BET1 (2018)
POWER TRIM & TILT ASSY 2

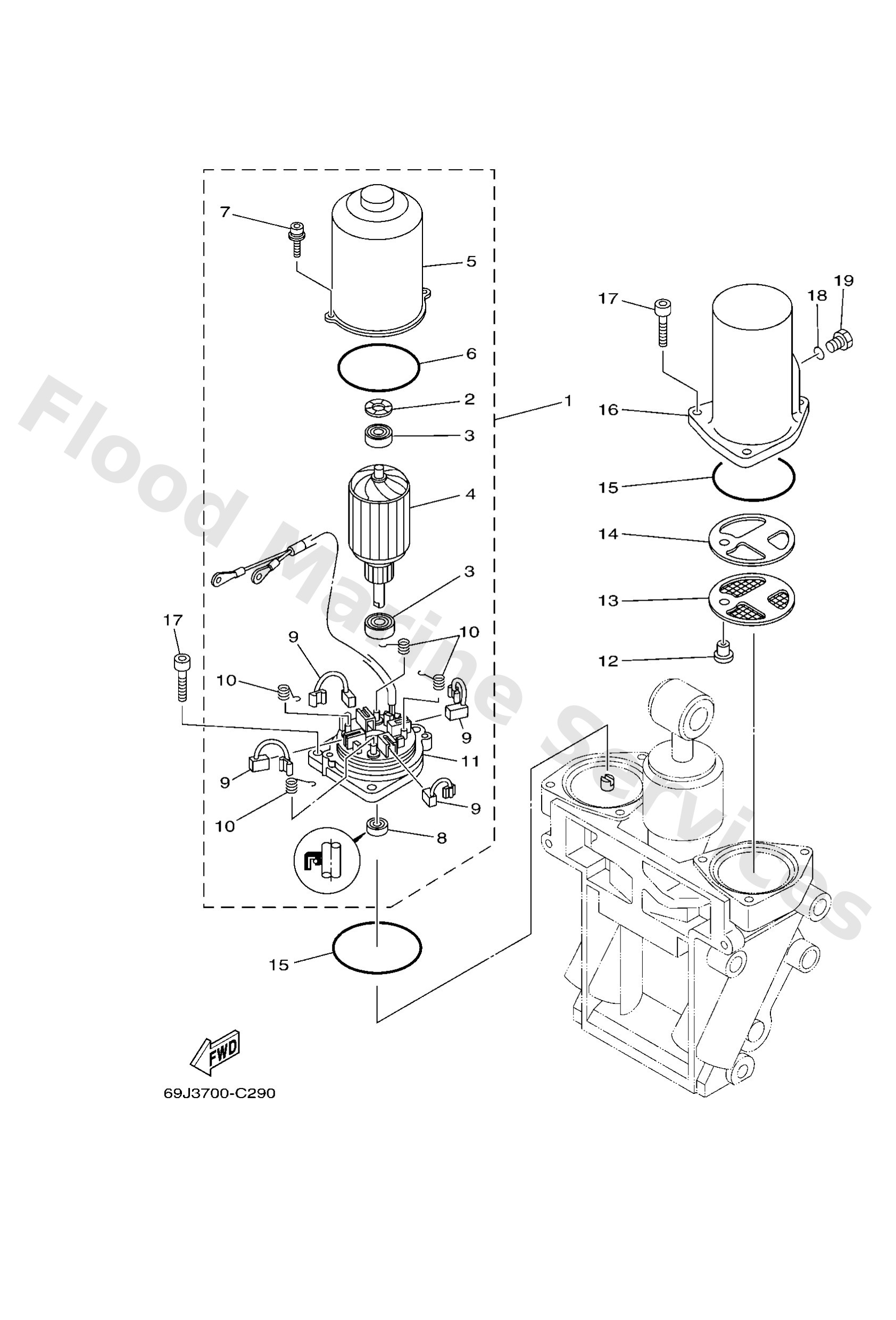

Diagram: POWER TRIM & TILT ASSY 2
Parts List
Reference
Description
Price
1
69J4388001
Motor assembly
Loading…
↗
2
9020614N50
Washer, wave
Loading…
↗
3
93399999T6
Bearing
Loading…
↗
4
69J4380500
Armature assembly
Loading…
↗
5
69J4380400
Stator assembly
Loading…
↗
6
69J4386100
O-ring
Loading…
↗
7
69J4388600
Bolt
Loading…
↗
8
69J4388200
Oil seal
Loading…
↗
9
69J4389100
Brush 1
Loading…
↗
10
69J4386K00
Spring, brush
Loading…
↗
11
69J4388101
Frame, end
Loading…
↗
12
69J4388H00
Plug
Loading…
↗
13
69J4381700
Filter 2
Loading…
↗
14
69J4388F00
Spacer
Loading…
↗
15
9321066001
O-ring
Loading…
↗
16
69J4382800
Body, reservoir
Loading…
↗
17
69J4388800
Bolt, socket
Loading…
↗
18
9321009165
O-ring
Loading…
↗
19
6H14382900
Plug, reservoir
Loading…
↗
