F300NSB (2021)
POWER TRIM & TILT ASSY 2

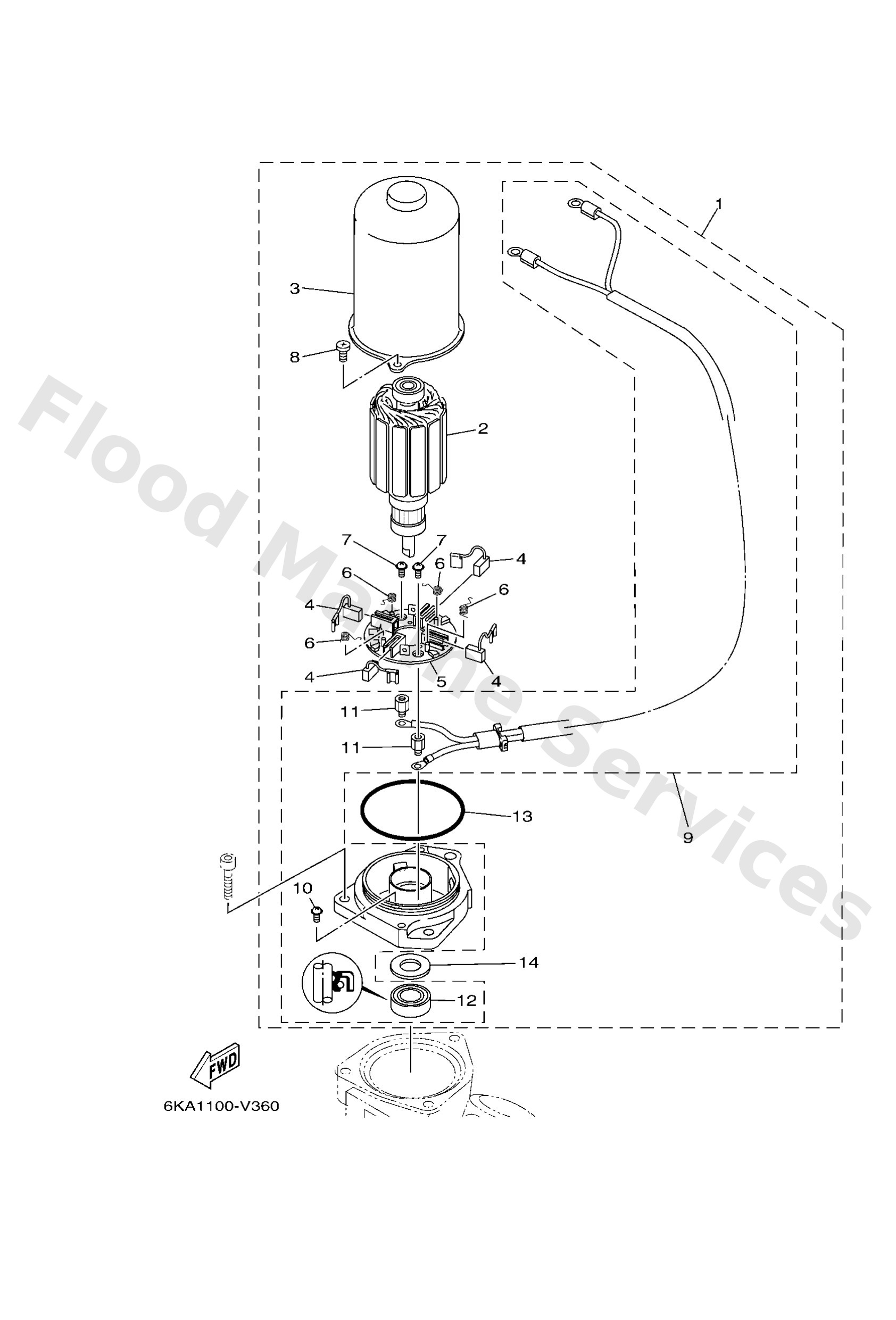

Diagram: POWER TRIM & TILT ASSY 2
Parts List
Reference
Description
Price
1
6KA43880098D
UR GRAY
Motor assembly
Loading…
↗
1
6KA4388009CE
UR WHITE
Motor assembly
Loading…
↗
2
6KA4380500
Armature assembly
Loading…
↗
3
6KA43804098D
UR GRAY
Stator assembly
Loading…
↗
3
6KA4380409CE
UR WHITE
Stator assembly
Loading…
↗
4
6KA4389200
Brush 2
Loading…
↗
5
6KA4380600
Brush holder assembly
Loading…
↗
6
6KA4386K00
Spring, brush
Loading…
↗
7
9760204306
Screw, pan head with washer
Loading…
↗
8
6KA4387900
Screw, with washer
Loading…
↗
9
6KA4388100
Frame, end
Loading…
↗
10
9760204308
Screw, pan head with washer
Loading…
↗
11
6KA4388F00
Spacer
Loading…
↗
12
6KA4388200
Oil seal
Loading…
↗
13
6KA4386200
O-ring
Loading…
↗
14
6KA4387G00
Washer
Loading…
↗
