Yamaha Outboard Parts - POWER TRIM & TILT ASSY 2 - F60CET (2011) | Flood Marine

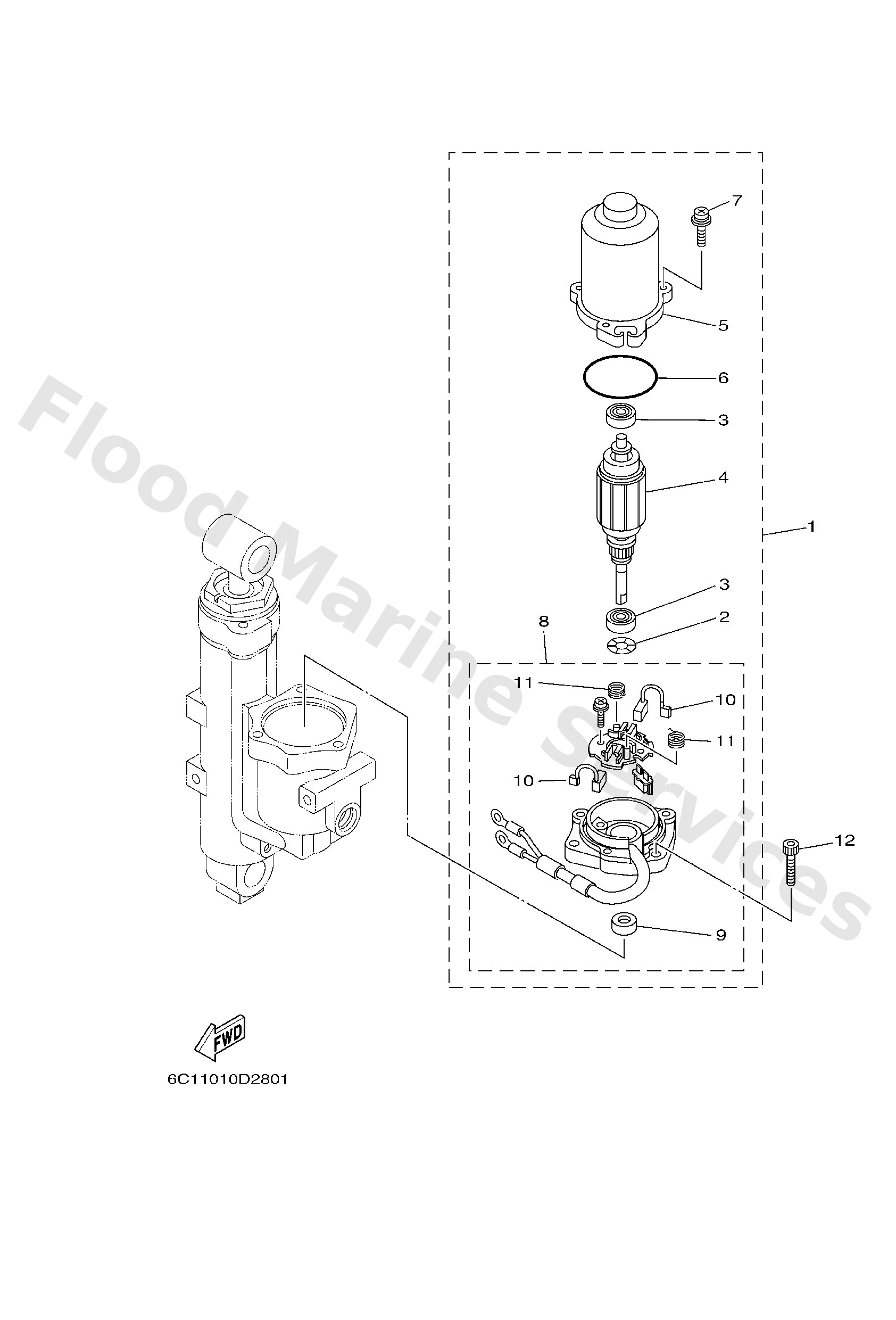

Diagram: POWER TRIM & TILT ASSY 2

Diagram

Parts List

Reference
Description
Price


1
6C54388001
Motor assembly
Loading…

↗
2
9020608N51
Washer, wave
Loading…

↗
3
93399999T8
Bearing
Loading…

↗
4
6C54380500
Armature assembly
Loading…

↗
5
6C54380401
Stator assembly
Loading…

↗
6
6C54386900
O-ring
Loading…

↗
7
6C54387900
Screw, with washer
Loading…

↗
8
6C54388101 WITH CIRCUIT BREAKER
Frame, end (with circuit break
Loading…

↗
9
6C54388200
Oil seal
Loading…

↗
10
6C54389100
Brush 1
Loading…

↗
11
6C54386K00
Spring, brush
Loading…

↗
12
62X4388800
Bolt,socket
Loading…

↗
