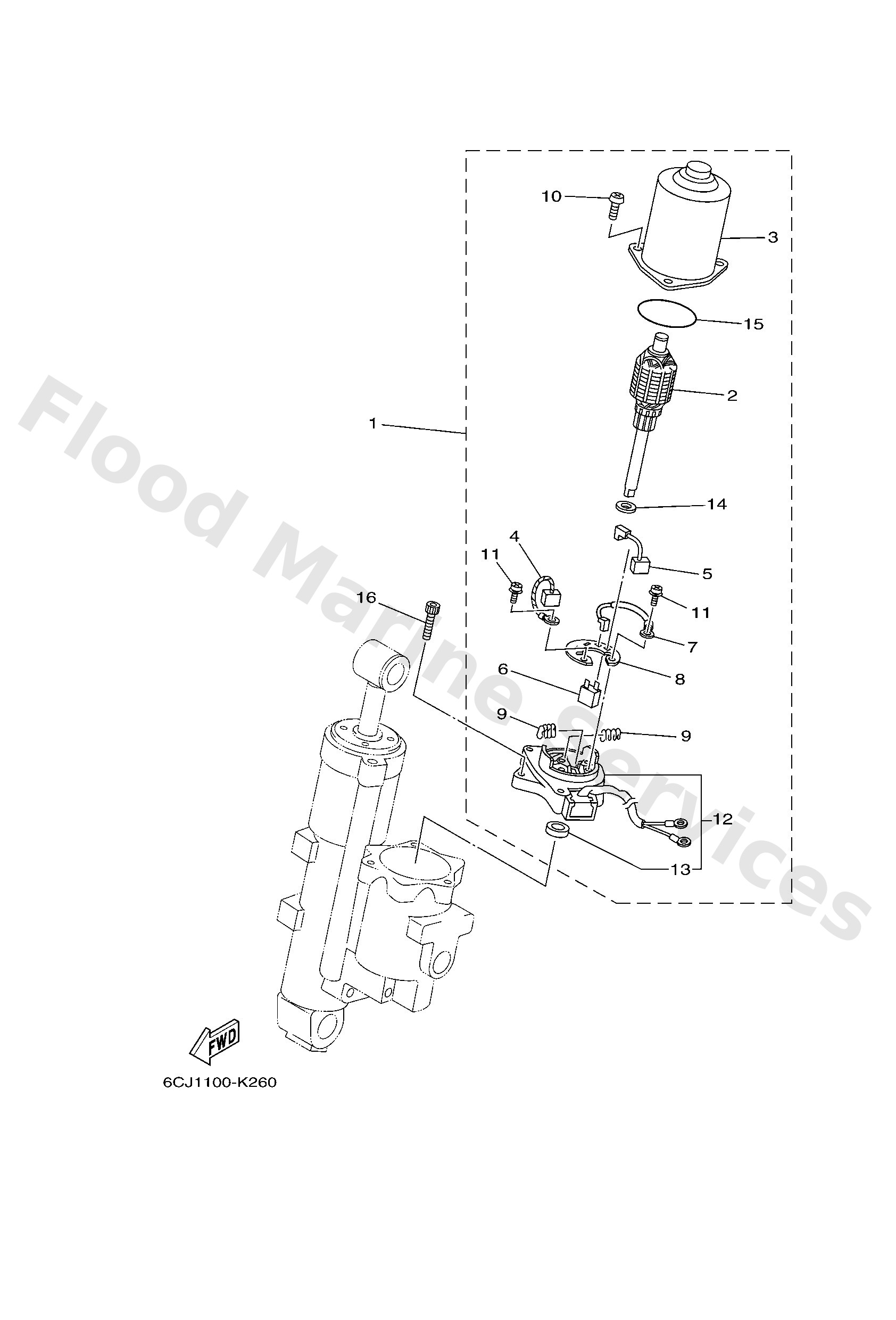

Diagram: POWER TRIM & TILT ASSY 2

Diagram

Parts List

Reference
Description
Price


1
69W4388000
Motor assembly
Loading…

↗
2
69W4380500
Armature assembly
Loading…

↗
3
62X4380401
Stator assembly
Loading…

↗
4
62Y4389200
Brush 2
Loading…

↗
5
62Y4389100
Brush 1
Loading…

↗
6
69W8218100
Circuit breaker comp.
Loading…

↗
7
62X4380700
Wire sub assembly
Loading…

↗
8
69W4380F00
Plate, brush holder
Loading…

↗
9
62X4386K00
Spring, brush
Loading…

↗
10
9788005020
Screw, pan head (e22)
Loading…

↗
11
9760704216
Screw, pan head with washer
Loading…

↗
12
69W4388100
Frame, end
Loading…

↗
13
9310208414
Oil seal(61a)
Loading…

↗
14
90201083J8
Washer, plate(62x)
Loading…

↗
15
9321052449
O-ring(50m)
Loading…

↗
16
62X4388800
Bolt,socket
Loading…

↗
