Yamaha Outboard Parts - POWER TRIM & TILT ASSY 2 - FL115BET (2016) | Flood Marine

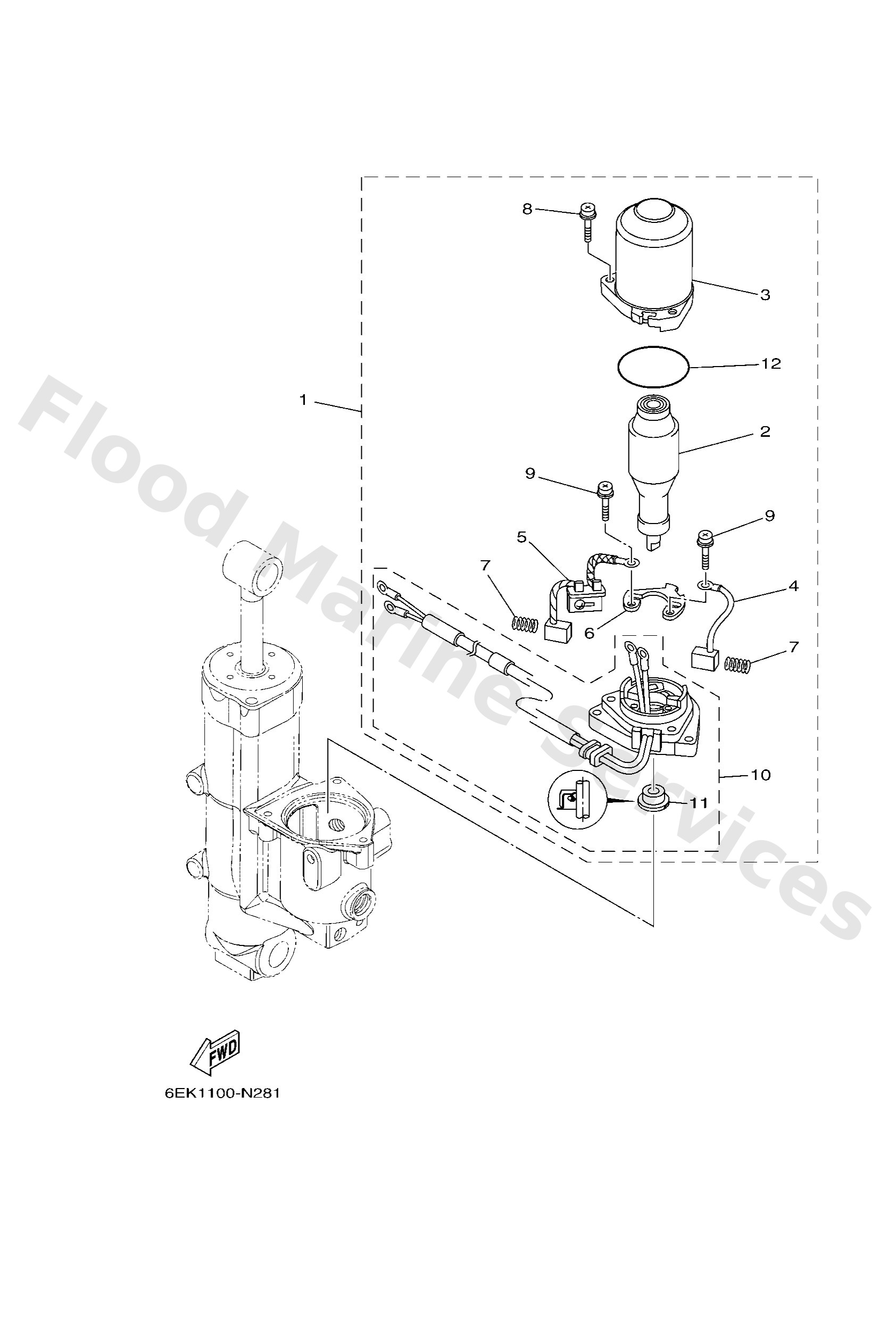

Diagram: POWER TRIM & TILT ASSY 2

Diagram

Parts List

Reference
Description
Price


1
6EK4388011
Motor assembly
Loading…

↗
2
6EK4380500
Armature assembly
Loading…

↗
3
6EK4380411
Stator assembly
Loading…

↗
4
6EK4389200
Brush 2
Loading…

↗
5
6EK8218100
Circuit breaker comp.
Loading…

↗
6
6EK4380F00
Plate, brush holder
Loading…

↗
7
62X4386K00
Spring, brush
Loading…

↗
8
63P4387910
Screw, with washer
Loading…

↗
9
9760204316
Screw, pan head with washer
Loading…

↗
10
6EK4388111
Frame, end
Loading…

↗
11
6EK4388200
Oil seal
Loading…

↗
12
93210554A9
O-ring
Loading…

↗
