Yamaha Outboard Parts - POWER TRIM & TILT ASSY 2 - FL115BET1 (2015) | Flood Marine

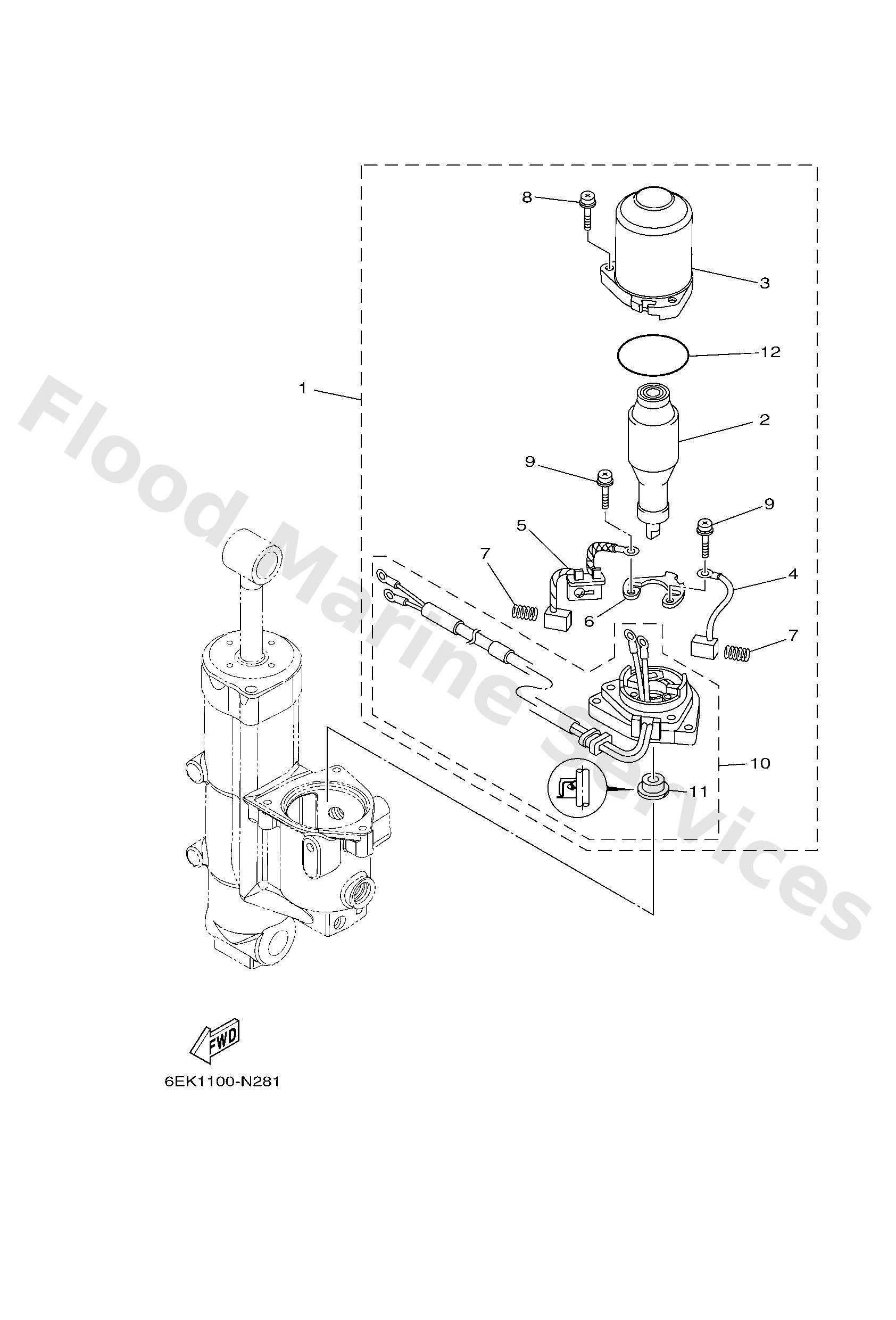

Diagram: POWER TRIM & TILT ASSY 2

Diagram

Parts List

Reference
Description
Price


1
6EK4388000
Motor assembly
Loading…

↗
2
63P4380510
Armature assembly
Loading…

↗
3
6EK4380400
Stator assembly
Loading…

↗
4
63P4389210
Brush 2
Loading…

↗
5
63P8218110
Circuit breaker comp.
Loading…

↗
6
63P4380F10
Plate, brush holder
Loading…

↗
7
62X4386K00
Spring, brush
Loading…

↗
8
63P4387910
Screw, with washer
Loading…

↗
9
9760204316
Screw, pan head with washer
Loading…

↗
10
6EK4388100
Frame, end
Loading…

↗
11
9310208414
Oil seal(61a)
Loading…

↗
12
93210554A9
O-ring
Loading…

↗
