Yamaha Outboard Parts - POWER TRIM & TILT ASSY 2 - FL350AET (2011) | Flood Marine

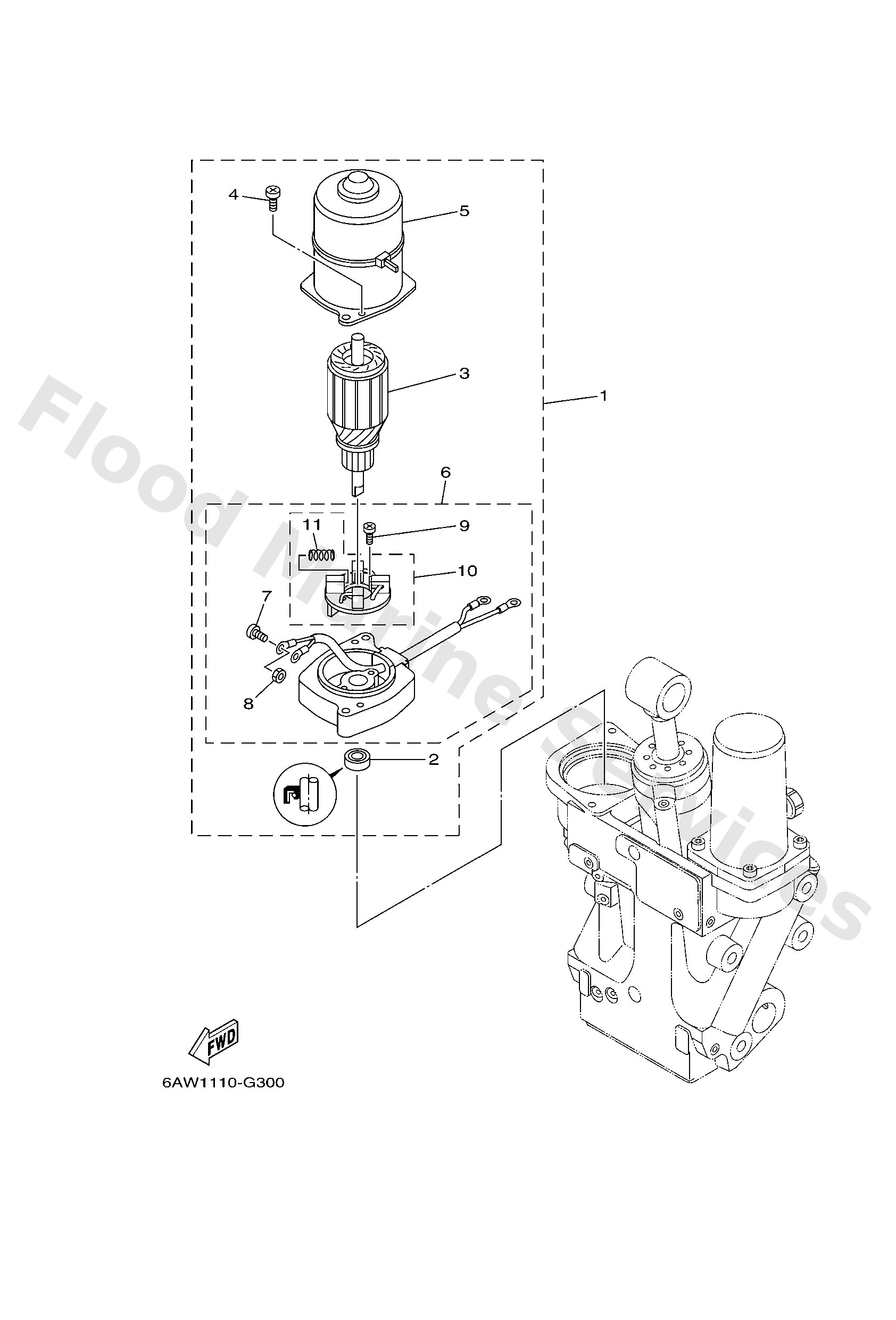

Diagram: POWER TRIM & TILT ASSY 2

Diagram

Parts List

Reference
Description
Price


1
6AW4388001
Motor assembly
Loading…

↗
2
6AW4388200
Oil seal
Loading…

↗
3
6AW4380500
Armature assembly
Loading…

↗
4
6AW4384300
Screw
Loading…

↗
5
6AW4380400
Stator assembly
Loading…

↗
6
6AW4388111
Frame, end
Loading…

↗
7
6AX4388700
Bolt
Loading…

↗
8
6AW4313800
Nut
Loading…

↗
9
6AW4384200
Screw
Loading…

↗
10
6AW4380J00
Holder, Brush
Loading…

↗
11
6AW4386K00
Spring, brush
Loading…

↗
