Yamaha Outboard Parts - POWER TRIM & TILT ASSY 2 - FT60BET (2003) | Flood Marine

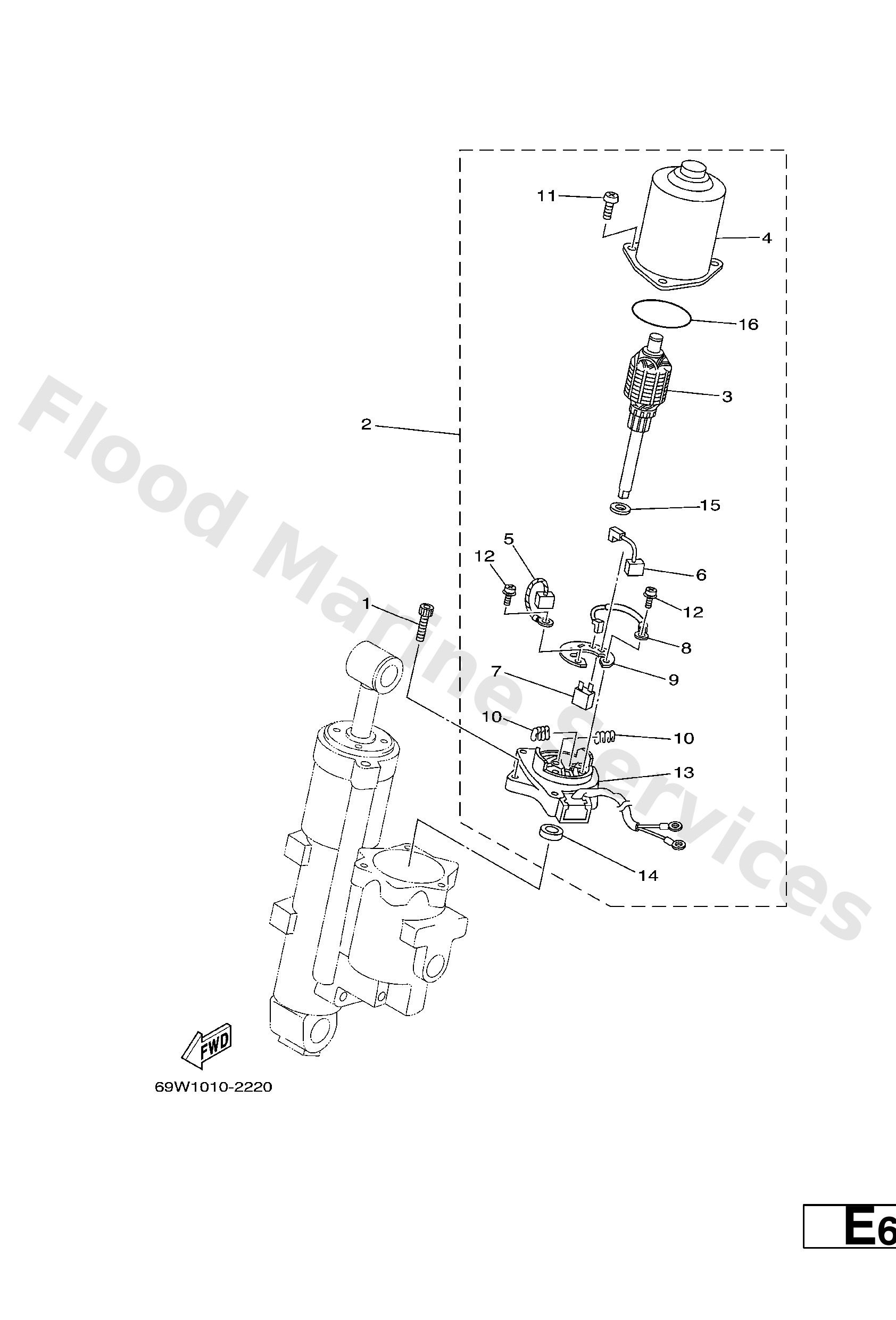

Diagram: POWER TRIM & TILT ASSY 2

Diagram

Parts List

Reference
Description
Price


1
62X−43888−00
Bolt,socket
Loading…

↗
2
69W−43880−00
Motor assembly
Loading…

↗
3
69W−43805−00
Armature assembly
Loading…

↗
4
62X−43804−01
Stator assembly
Loading…

↗
5
62Y−43892−00
Brush 2
Loading…

↗
6
62Y−43891−00
Brush 1
Loading…

↗
7
69W−82181−00
Circuit breaker comp.
Loading…

↗
8
62X−43807−00
Wire sub assembly
Loading…

↗
9
69W−4380F−00
Plate, brush holder
Loading…

↗
10
62X−4386K−00
Spring, brush
Loading…

↗
11
97880−05020
Screw, pan head (e22)
Loading…

↗
12
9760204216
Screw, pan head with washer
Loading…

↗
13
69W−43881−00
Frame, end
Loading…

↗
14
93102−08414
Oil seal(61a)
Loading…

↗
15
90201−083J8
Washer, plate(62x)
Loading…

↗
16
93210−52449
O-ring(50m)
Loading…

↗
