XF425NSA (2022)
POWER TRIM & TILT ASSY 2

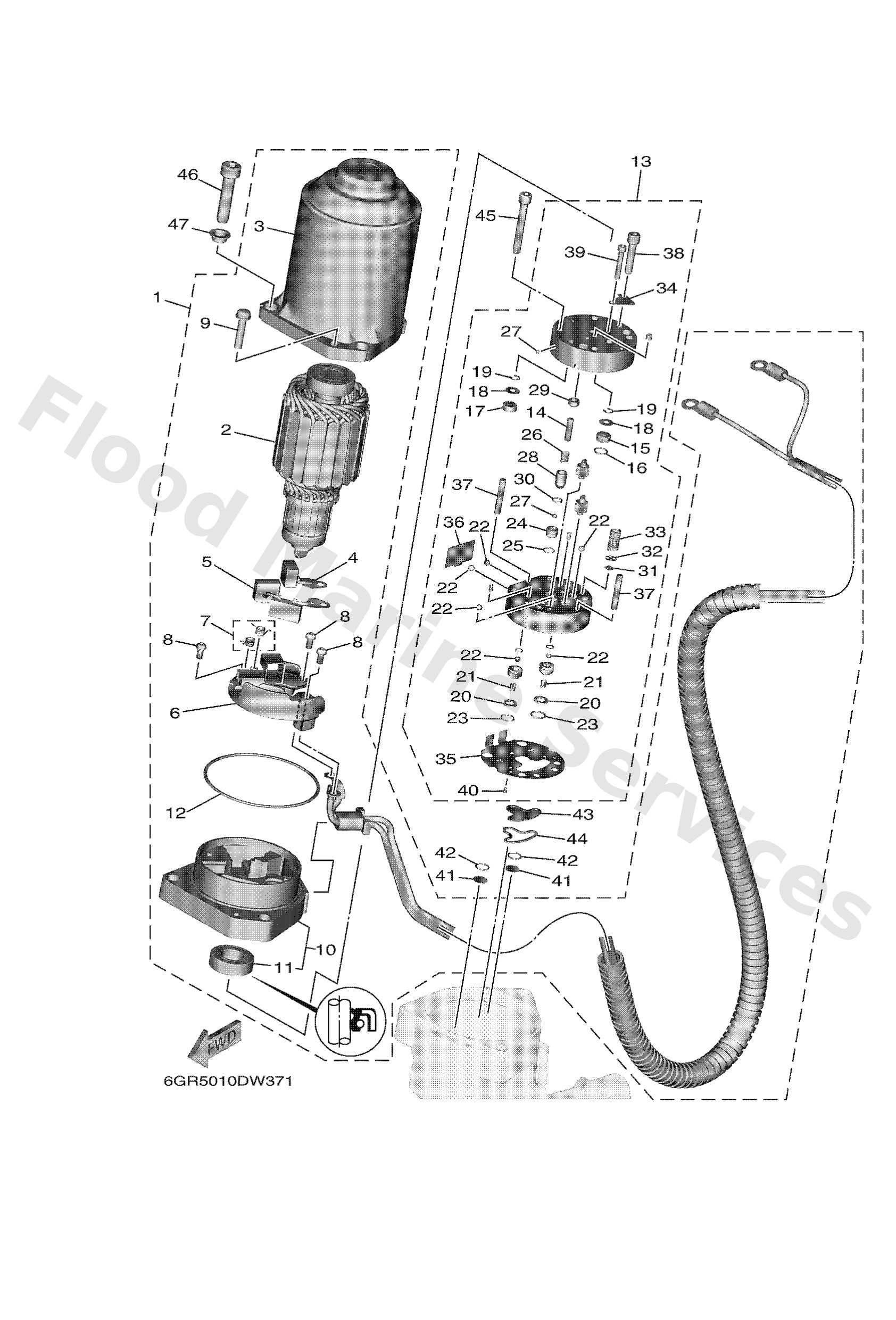

Diagram: POWER TRIM & TILT ASSY 2
Parts List
Reference
Description
Price
1
6GR4388002
Motor assembly
Loading…
↗
2
6GR4380500
Armature assembly
Loading…
↗
3
6GR4380400
Stator assembly
Loading…
↗
4
6GR4389200
Brush 2
Loading…
↗
5
6GR8218100
Circuit breaker comp.
Loading…
↗
6
6GR4380F00
Plate, brush holder
Loading…
↗
7
6GR4386K00
Spring, brush
Loading…
↗
8
9760204310
Screw, Pan Head With Washer
Loading…
↗
9
67C4387910
Screw, with washer
Loading…
↗
10
6GR4388102
Frame, end
Loading…
↗
11
6GR4388201
Oil seal
Loading…
↗
12
6GR4386401
O-ring
Loading…
↗
13
6GR4383000
Gear pump assembly
Loading…
↗
14
9360308072
Pin,dowel (282)
Loading…
↗
15
6CJ4384100
Piston, shuttle
Loading…
↗
16
6H14388300
O-ring
Loading…
↗
17
6CJ4384M00
Piston, shuttle 2
Loading…
↗
18
69A4384F00
Seal, main valve
Loading…
↗
19
9900203600
Circlip(6l5)
Loading…
↗
20
6C64387G00
Washer
Loading…
↗
21
6C64385300
Spring, main valve
Loading…
↗
22
9350532038
Ball(7fk)
Loading…
↗
23
69J4389J00
O-ring
Loading…
↗
24
6GR4385100
Seat, relief valve
Loading…
↗
25
93210064A5
O-ring(61a)
Loading…
↗
26
6C54385510
Spring, up relief
Loading…
↗
27
9350108001
Ball
Loading…
↗
28
6D84384400
Pin, valve support
Loading…
↗
29
6D84384300
Screw, valve lock
Loading…
↗
30
9321004N51
O-ring
Loading…
↗
31
6H14384G11
Seal, relief valve
Loading…
↗
32
6H14384410
Pin, valve support
Loading…
↗
33
6GR4385600
Spring, down relief
Loading…
↗
34
6D84382L00
Cap, relief valve
Loading…
↗
35
6GR4389500
Seat, relief valve
Loading…
↗
36
6C54385400
Spring, manual release
Loading…
↗
37
9360426256
Pin, dowel
Loading…
↗
38
9131805030
Bolt
Loading…
↗
39
9131803025
Bolt
Loading…
↗
40
9131803005
Bolt
Loading…
↗
41
6C64381700
Filter 2
Loading…
↗
43
6C54381600
Filter 1
Loading…
↗
44
6C54380G00
Plate
Loading…
↗
45
9131805045
Bolt
Loading…
↗
46
9011008M05
Bolt, hexagon socket head
Loading…
↗
47
6GR2311300
Collar
Loading…
↗
