PSX6L1 (2026)
POWER UNIT

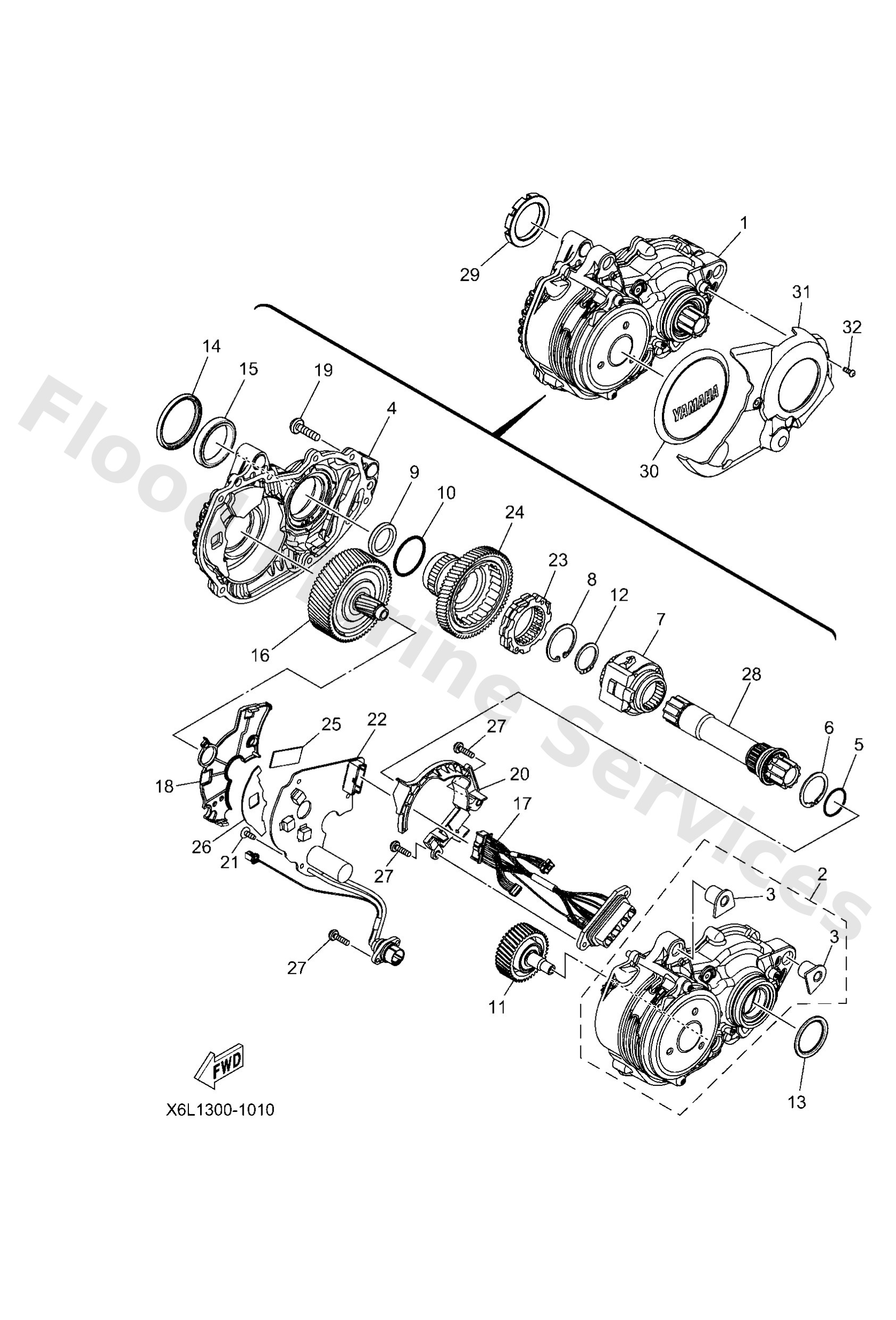

Diagram: POWER UNIT
Parts List
Reference
Description
Price
1
X6L1706110
PW-X4, '26
-
Loading…
↗
2
X4M1781000
Housing assembly
Loading…
↗
3
X4M1518910
-
Loading…
↗
4
X4M1751000
Housing comp.
Loading…
↗
5
9321022010
O-ring
Loading…
↗
6
9900924800
Circlip
Loading…
↗
7
X2Y1706220
Torque Sensor assembly
Loading…
↗
8
9900930500
Circlip (650)
Loading…
↗
9
X0P1634700
Seal, dust
Loading…
↗
10
9321032006
O-ring
Loading…
↗
11
X3M1760F00
Idler shaft assembly
Loading…
↗
12
9341022098
Circlip
Loading…
↗
13
X4M1842810
Seal, dust
Loading…
↗
14
X4M1634700
Seal, dust
Loading…
↗
15
X4M1715800
Collar 1
Loading…
↗
16
X3M1784001
-
Loading…
↗
17
X3M86171R0
-
Loading…
↗
18
X3M1752400
Holder
Loading…
↗
19
9014904006
Screw
Loading…
↗
20
X3M1575801
Guide, wire
Loading…
↗
21
9016403009
Screw, tapping
Loading…
↗
22
X6L8621210
-
Loading…
↗
23
X2Y1676000
One-way clutch comp.
Loading…
↗
24
X3M1661100
Clutch housing comp.
Loading…
↗
25
X3M8A8B0M0
-
Loading…
↗
26
X3M8A8B1M0
-
Loading…
↗
27
9015703011
Screw, pan head
Loading…
↗
28
X4M1786200
Axle,seal comp.
Loading…
↗
29
X0P1746300
Nut, lock
Loading…
↗
30
X6L1549000
-
Loading…
↗
31
X4M2171100
Cover, side 1
Loading…
↗
32
9201703008
Bolt, button head
Loading…
↗
