Yamaha Outboard Parts - PULLEYS & BELTS - ME372STIP1 (2007) | Flood Marine

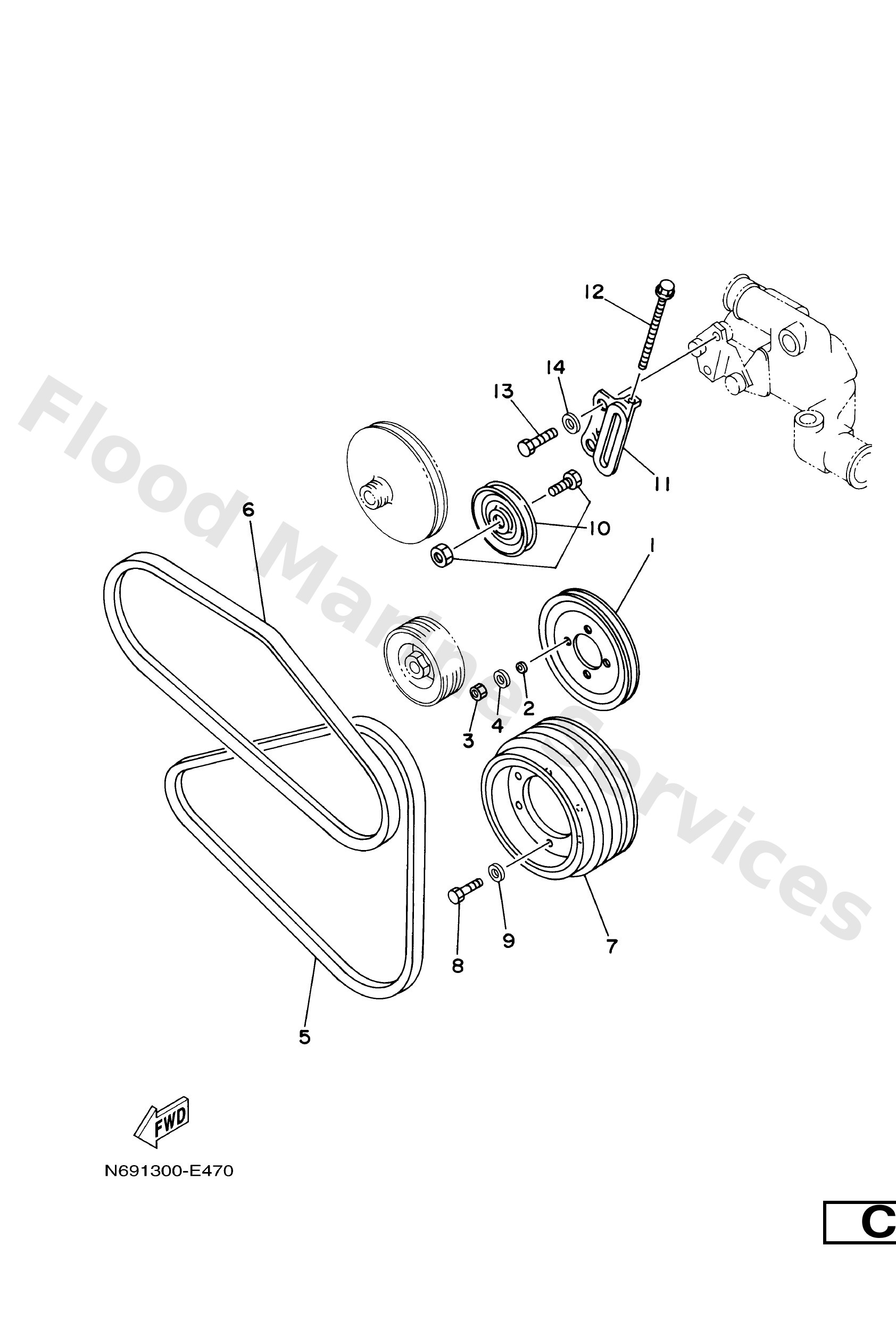

Diagram: PULLEYS & BELTS

Diagram

Parts List

Reference
Description
Price


1
6TA1244200
Pulley 2
Loading…

↗
2
90387085E1
Collar (7r4)
Loading…

↗
3
9531708600
Nut(6ta)
Loading…

↗
4
9290708600
Washer(6ta)
Loading…

↗
5
6TC1244400 MITSUBOSHI
Belt 1
Loading…

↗
6
6TC1244501 MITSUBOSHI
Belt,2
Loading…

↗
7
6TC1102100
Pulley,clankshaft 1
Loading…

↗
8
9702708020
Bolt, hexagon
Loading…

↗
10
6TA1314400
Pulley, adjusting
Loading…

↗
11
6TA1244E00
Bracket 1
Loading…

↗
12
6TA1283200
Bolt, adjusting
Loading…

↗
13
9702710035
Bolt(6ta)
Loading…

↗
14
9290710600
Washer(6ta)
Loading…

↗
