Yamaha Outboard Parts - Partie Electrique 1 - 115BETO (1997) | Flood Marine

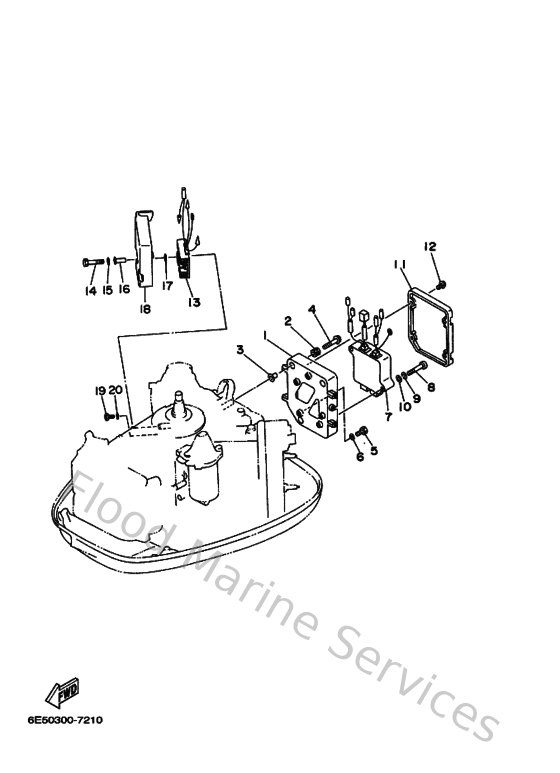

Diagram: Partie Electrique 1

Diagram

Parts List

Reference
Description
Price


1
6N785542018D
Bracket
Loading…

↗
2
6A0823170000
Damper, ignition coil
Loading…

↗
3
624425420000
Collar
Loading…

↗
4
9011906M5900
Bolt, with washer
Loading…

↗
5
970800601200
Bolt(gh1)
Loading…

↗
6
929900660000
Washer, plain (646)
Loading…

↗
7
6E5855400000
C.d.i. unit assembly
Loading…

↗
8
985800654000
Screw pan head
Loading…

↗
9
929950610000
Washer(6a1)
Loading…

↗
11
6N7855370000
Cover
Loading…

↗
12
9015906M1100
Screw, with washer(6l2)
Loading…

↗
13
6H0819600000
Rectifier & regulator assembly
Loading…

↗
14
970130604500
Bolt, hexagon
Loading…

↗
16
9038706M7700
Collar
Loading…

↗
17
9020106M0800
Washer, plate(6e3)
Loading…

↗
18
6E5819610000
Cover
Loading…

↗
19
970950601200
Bolt(gh1)
Loading…

↗
