Yamaha Outboard Parts - Partie Electrique 1 - 225BETOL (1994) | Flood Marine

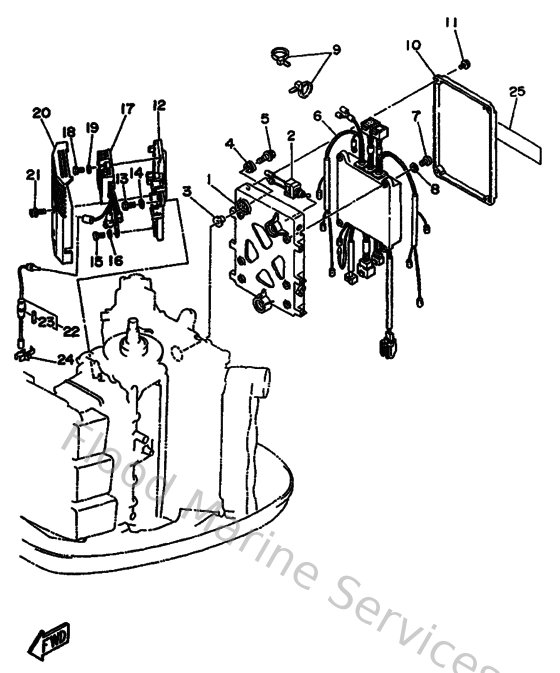

Diagram: Partie Electrique 1

Diagram

Parts List

Reference
Description
Price


1
6R385542014D
Bracket
Loading…

↗
2
6R38259E0000
Switch assembly
Loading…

↗
3
9038706M0300
Collar (676)
Loading…

↗
4
9048009M1200
Grommet (6a0)
Loading…

↗
5
9011906M6000
Bolt, with washer
Loading…

↗
6
6R5855400000
C.d.i. Unit Assembly
Loading…

↗
7
985800602000
Screw pan head
Loading…

↗
8
929900660000
Washer, plain (646)
Loading…

↗
9
9046513M3600
Clamp(6h4)
Loading…

↗
10
6R3855370000
Cover
Loading…

↗
11
9015906M1100
Screw, with washer(6l2)
Loading…

↗
12
6R3819480094
Bracket
Loading…

↗
13
970950601600
Bolt, hexagon deep recess
Loading…

↗
15
970130601200
Bolt(gh1)
Loading…

↗
17
6R3819601000
Rectifier & regulator assembly
Loading…

↗
18
9010106M2700
Bolt
Loading…

↗
20
6R3819420000
Cover
Loading…

↗
21
9015906M0800
Screw, with washer(6k7)
Loading…

↗
22
6R3821500000
Fuse holder assembly
Loading…

↗
23
705821510000
Fuse (30a)
Loading…

↗
24
6G5821520000
Holder, fuse
Loading…

↗
