Yamaha Outboard Parts - Partie Electrique 1 - 250AETOXLX (1994) | Flood Marine

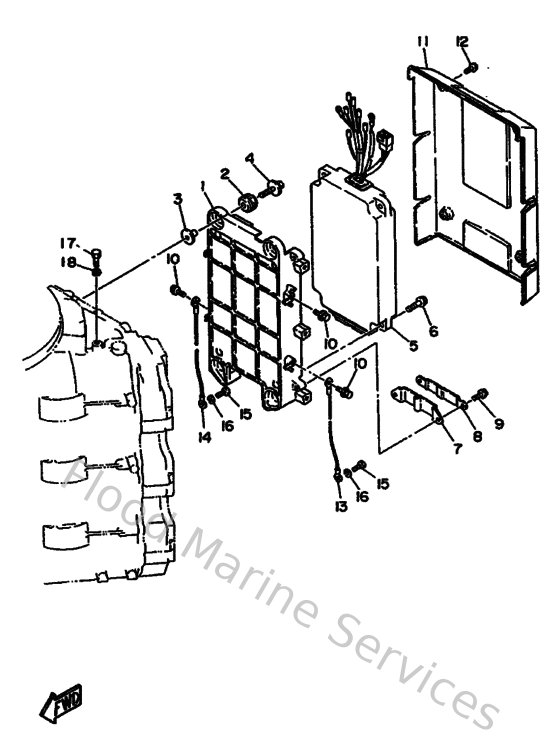

Diagram: Partie Electrique 1

Diagram

Parts List

Reference
Description
Price


1
61A855420094
Bracket
Loading…

↗
2
9048009M1200
Grommet (6a0)
Loading…

↗
3
9038706M0300
Collar (676)
Loading…

↗
4
9011906M2800
Bolt, With Washer
Loading…

↗
5
61A855400100
C.d.i. Unit Assembly
Loading…

↗
6
975130652500
Bolt, with washer(61b)
Loading…

↗
7
61A855480000
Holder
Loading…

↗
8
61A855250000
Cover
Loading…

↗
9
975950651600
Bolt, with washer(6r6)
Loading…

↗
10
970950601400
Bolt(gj3)
Loading…

↗
11
61A855370000
Cover
Loading…

↗
12
979800622000
Screw, with washer(64x)
Loading…

↗
13
61A825190000
Wire, Earth Lead
Loading…

↗
14
6R3825190000
Wire, earth lead
Loading…

↗
15
970130601200
Bolt(gh1)
Loading…

↗
16
929950610000
Washer(6a1)
Loading…

↗
17
970950601600
Bolt, hexagon deep recess
Loading…

↗
18
929900660000
Washer, plain (646)
Loading…

↗
