25DMH (1997)
Partie Electrique 1

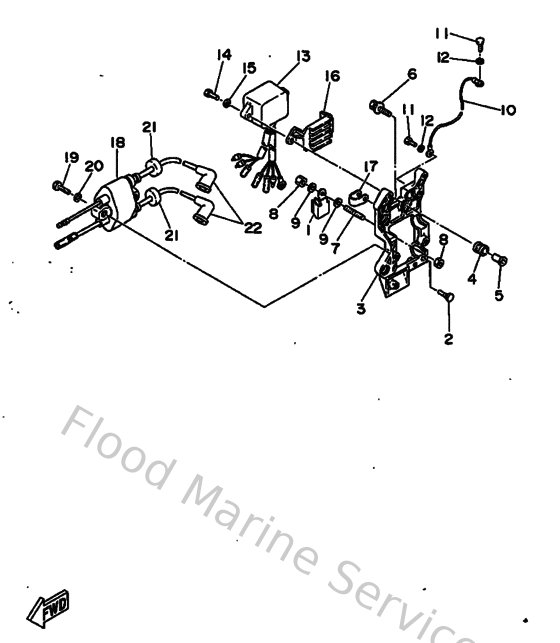

Diagram: Partie Electrique 1
Parts List
Reference
Description
Price
1
9046508M1300
Clamp (695)
Loading…
↗
2
689855470000
Damper
Loading…
↗
3
695855420094
Bracket
Loading…
↗
4
6A0823170000
Damper, ignition coil
Loading…
↗
5
624425420000
Collar
Loading…
↗
6
9011906M8800
Bolt, with washer
Loading…
↗
7
9011606M0700
Bolt, stud (688)
Loading…
↗
8
953800660000
Nut(661)
Loading…
↗
9
929900610000
Washer(6a1)
Loading…
↗
10
689825190000
Wire Earth Lead
Loading…
↗
11
973900601200
Bolt(gh1)
Loading…
↗
12
929950610000
Washer(6a1)
Loading…
↗
13
695855401200
C.d.i. unit assembly
Loading…
↗
14
973950602500
Bolt
Loading…
↗
15
929900660000
Washer, plain (646)
Loading…
↗
16
689855480100
Holder
Loading…
↗
18
680855700200
Ignition coil assembly
Loading…
↗
20
929950660000
Washer, plain (646)
Loading…
↗
21
904802516100
Grommet(656)
Loading…
↗
22
663823700100
Plug cap assembly
Loading…
↗
