Yamaha Outboard Parts - Partie Electrique 1 - 40QMH (1990) | Flood Marine

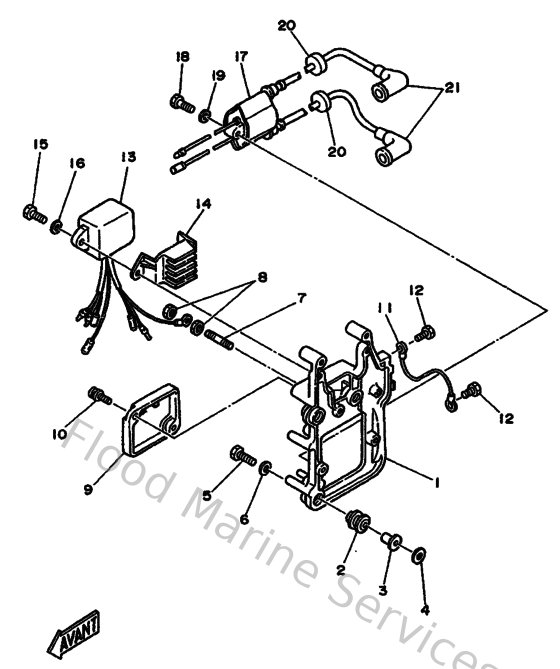

Diagram: Partie Electrique 1

Diagram

Parts List

Reference
Description
Price


1
6R6855420094
Bracket
Loading…

↗
2
6A0823170000
Damper, ignition coil
Loading…

↗
3
624425420000
Collar
Loading…

↗
4
902010605000
Washer, plate(6e3)
Loading…

↗
5
970800603000
Bolt(jf7)
Loading…

↗
6
929900660000
Washer, plain (646)
Loading…

↗
7
9011606M0700
Bolt, stud (688)
Loading…

↗
8
953030660000
Nut(661)
Loading…

↗
9
6A0819160000
Cover, Terminal
Loading…

↗
11
662825190000
Wire, earth lead
Loading…

↗
12
970800601200
Bolt(gh1)
Loading…

↗
13
689855402000
C.d.i. Unit Assembly
Loading…

↗
15
973130602500
Bolt
Loading…

↗
17
689855702100
Ignition coil assembly
Loading…

↗
20
904802516100
Grommet(656)
Loading…

↗
21
6G1823702000
Plug cap assembly
Loading…

↗
