50HM (1995)
Partie Electrique 1

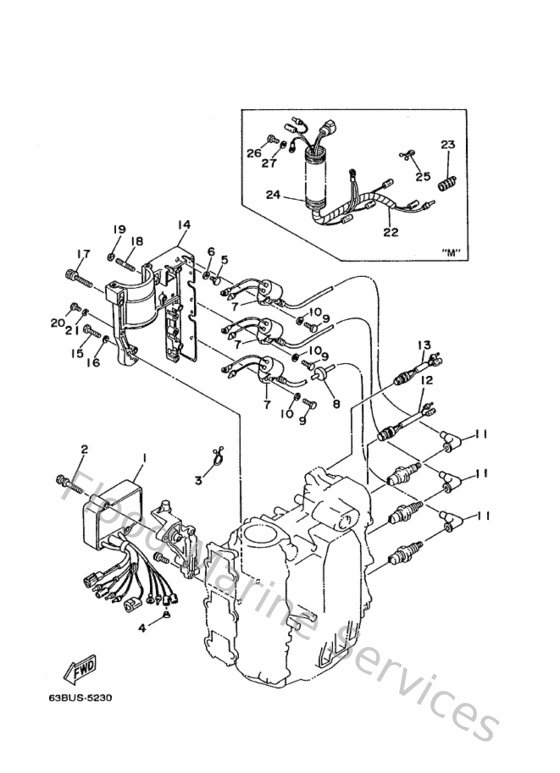

Diagram: Partie Electrique 1
Parts List
Reference
Description
Price
1
63D855400000
C.d.i. unit assembly
Loading…
↗
2
9011906M5100
Bolt, with washer(6h4)
Loading…
↗
3
904641603900
Clamp (3y2)
Loading…
↗
4
703821190000
Cover, lead wire
Loading…
↗
5
973950601400
Bolt(gj3)
Loading…
↗
6
929900660000
Washer, plain (646)
Loading…
↗
7
6H5855700000
Ignition coil assembly
Loading…
↗
8
904802516100
Grommet(656)
Loading…
↗
9
970950602000
Bolt(7u8)
Loading…
↗
11
6G1823702000
Plug cap assembly
Loading…
↗
12
689825600000
Thermo switch assembly
Loading…
↗
13
6H4818220298
Bracket, starting motor
Loading…
↗
15
970950603000
Bolt(jf7)
Loading…
↗
17
975130825000
Vis Hexagonal Avc Rondelle
Loading…
↗
18
956700664000
Bolt, stud(6h4)
Loading…
↗
19
9017906M2400
Nut(6j8)
Loading…
↗
22
63D825310000
Wire, lead
Loading…
↗
23
9044610M0200
Tube (6e5)
Loading…
↗
25
9046405M1600
Clamp(6j8)
Loading…
↗
