6DMH (1998)
Partie Electrique 1

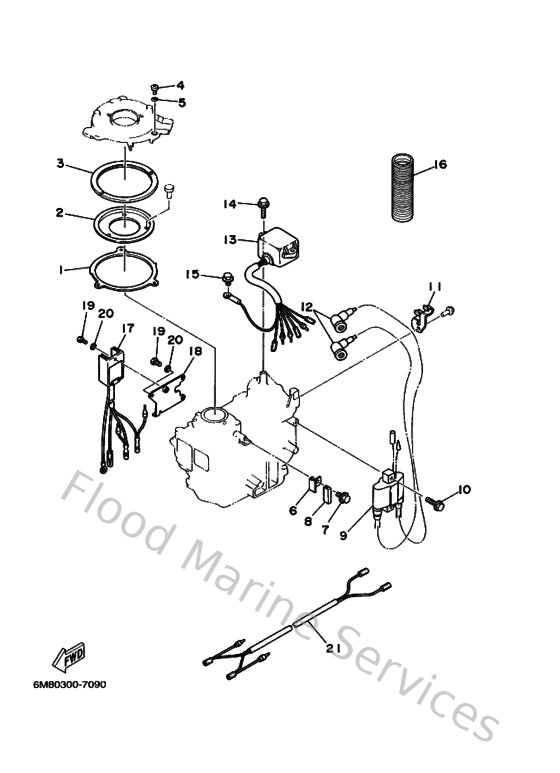

Diagram: Partie Electrique 1
Parts List
Reference
Description
Price
1
6N0G16110000
Retainer, magneto base 1
Loading…
↗
2
6G1416120000
Retainer, magneto base
Loading…
↗
3
6N0G16130000
Plate, base friction
Loading…
↗
4
978850501000
Screw, pan head(62x)
Loading…
↗
5
929950560000
Washer, plain (646)
Loading…
↗
6
6G1416150000
Stopper, magneto base
Loading…
↗
7
958800601000
Bolt, flange(7ht)
Loading…
↗
8
6G1441940000
Cap
Loading…
↗
9
6G1855700100
Ignition coil assembly
Loading…
↗
10
958950602500
Bolt, flange deep recess
Loading…
↗
11
9046508M1700
Clamp (6G1)
Loading…
↗
12
6G1823702100
Plug cap assembly
Loading…
↗
13
696855401100
C.d.i. unit assembly
Loading…
↗
14
958950602000
Bolt, flange(jk3)
Loading…
↗
15
958950601000
Bolt, flange(7ht)
Loading…
↗
16
6G1835570000
Tube
Loading…
↗
17
6J8819600000
Rectifier & regulator assembly
Loading…
↗
18
6N0H19150000
Plate, regulator fitting
Loading…
↗
19
970950601200
Bolt(gh1)
Loading…
↗
20
929950660000
Washer, plain (646)
Loading…
↗
21
6N0H25531000
Extension, wire lead
