75AE (1995)
Partie Electrique 1

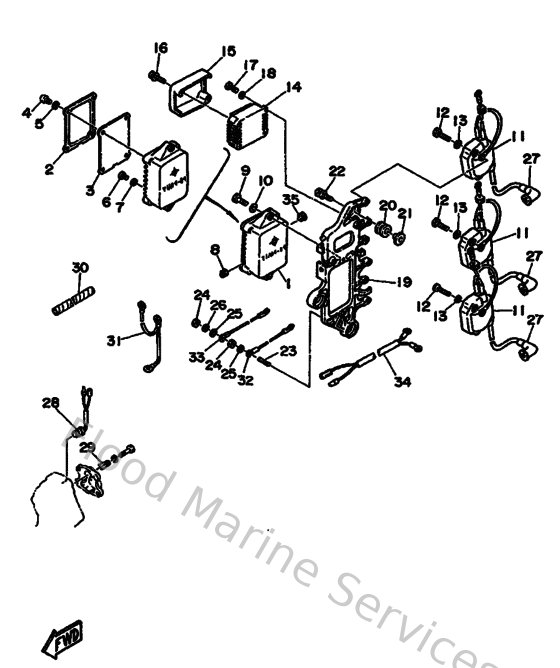

Diagram: Partie Electrique 1
Parts List
Reference
Description
Price
1
688855401600
C.d.i. Unit assembly
Loading…
↗
2
688855371200
Cover
Loading…
↗
3
6E5855471000
Damper
Loading…
↗
4
985800501000
Screw, pan head(62x)
Loading…
↗
5
929900560000
Washer, plain (646)
Loading…
↗
6
985800400800
Screw, pan head (713)
Loading…
↗
7
929900420000
Ybs66-4 washer, plain
Loading…
↗
8
663819220000
Grommet
Loading…
↗
9
970950602500
Bolt
Loading…
↗
10
929900660000
Washer, plain (646)
Loading…
↗
11
688855701100
Ignition coil assembly
Loading…
↗
12
970950603000
Bolt(jf7)
Loading…
↗
17
970800602000
Bolt(7u8)
Loading…
↗
20
9048009M1200
Grommet (6a0)
Loading…
↗
21
9038706M0300
Collar (676)
Loading…
↗
22
9011906M2600
Bolt, with washer
Loading…
↗
23
9011606M2200
Bolt, stud (6h1)
Loading…
↗
24
953800670000
Nut
Loading…
↗
25
929900620000
Ybs66-6 washer, plain
Loading…
↗
26
929950610000
Washer(6a1)
Loading…
↗
27
6G1823702000
Plug cap assembly
Loading…
↗
28
688825601000
Thermo switch assembly
Loading…
↗
29
688825880100
Plate
Loading…
↗
30
9044610M0100
Tube (6e5)
Loading…
↗
31
697825190000
Wire,earth lead
Loading…
↗
35
904800606600
Grommet
Loading…
↗
