75AE (1998)
Partie Electrique 1

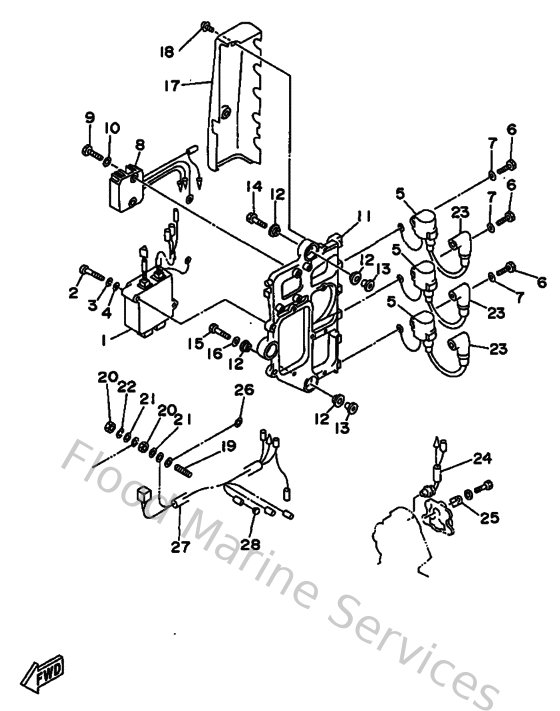

Diagram: Partie Electrique 1
Parts List
Reference
Description
Price
1
688855400000
C.d.i. unit assembly
Loading…
↗
2
985800654000
Screw pan head
Loading…
↗
3
929950660000
Washer, plain (646)
Loading…
↗
4
929900660000
Washer, plain (646)
Loading…
↗
5
697855700000
Ignition coil assembly
Loading…
↗
8
6H0819600000
Rectifier & regulator assembly
Loading…
↗
9
970950602000
Bolt(7u8)
Loading…
↗
11
6H1855420094
Bracket
Loading…
↗
12
9048009M2500
Grommet(688)
Loading…
↗
13
9038706M0300
Collar (676)
Loading…
↗
14
9011906M5600
Bolt, with washer
Loading…
↗
15
9010906M3900
Bolt(6h0)
Loading…
↗
16
9020106M3100
Washer (6a0)
Loading…
↗
17
6H1819160000
Cover, terminal
Loading…
↗
18
9015906M1100
Screw, with washer(6l2)
Loading…
↗
19
9011606M2200
Bolt, stud (6h1)
Loading…
↗
20
953800670000
Nut
Loading…
↗
21
929900620000
Ybs66-6 washer, plain
Loading…
↗
22
929950610000
Washer(6a1)
Loading…
↗
23
6G1823702000
Plug cap assembly
Loading…
↗
24
688825601000
Thermo switch assembly
Loading…
↗
25
688825880100
Plate
Loading…
↗
26
61A825190000
Wire, Earth Lead
Loading…
↗
27
692825900000
Wire harness assembly
Loading…
↗
28
703821190000
Cover, lead wire
Loading…
↗
