F8BMH (1999)
Partie Electrique 1

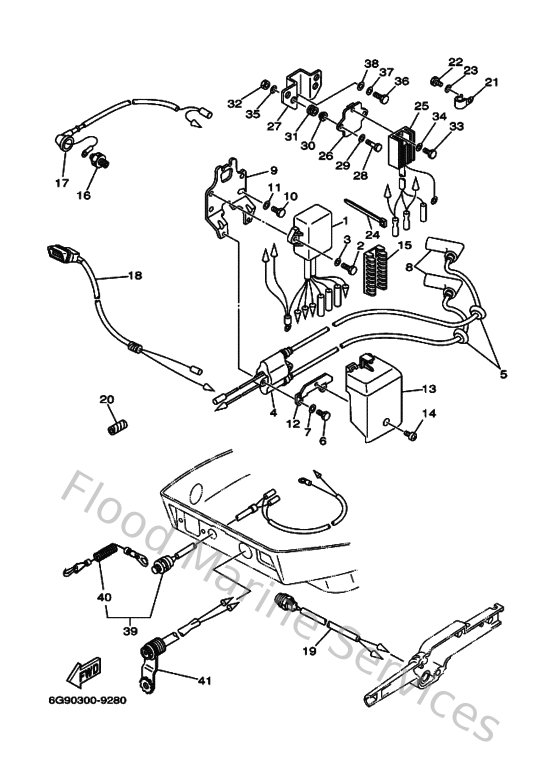

Diagram: Partie Electrique 1
Parts List
Reference
Description
Price
1
6G9855402200
C.d.i. unit assembly
Loading…
↗
2
970950602000
Bolt(7u8)
Loading…
↗
3
929950660000
Washer, plain (646)
Loading…
↗
4
6G8855702100
Ignition coil assembly
Loading…
↗
5
904802516100
Grommet(656)
Loading…
↗
6
9010106M2700
Bolt
Loading…
↗
8
6G8823703000
Plug cap assembly
Loading…
↗
9
6G8855420000
Bracket
Loading…
↗
10
970800602000
Bolt(7u8)
Loading…
↗
12
6G8855250000
Plate
Loading…
↗
13
6G8819160000
Cover, Terminal
Loading…
↗
14
989800600800
Screw, bind(2tv)
Loading…
↗
15
6G8825220000
Clamp
Loading…
↗
16
6G8825040000
Oil pressure switch
Loading…
↗
17
6G8821270000
Wire Lead 2
Loading…
↗
18
6G8835820100
Pilot Light assembly
Loading…
↗
19
6G8825501000
Stop switch assembly
Loading…
↗
20
9044610M0200
Tube (6e5)
Loading…
↗
21
9046508M7500
Clamp
Loading…
↗
22
970800601200
Bolt(gh1)
Loading…
↗
23
929030660000
Washer, plain (646)
Loading…
↗
24
9046513M1100
Clamp (6e5)
Loading…
↗
39
6G8825750000
Engine stop switch assembly
Loading…
↗
40
682825560000
Lanyard, stop switch
Loading…
↗
