Yamaha Outboard Parts - Partie Electrique 1 - L130BETOL (1997) | Flood Marine

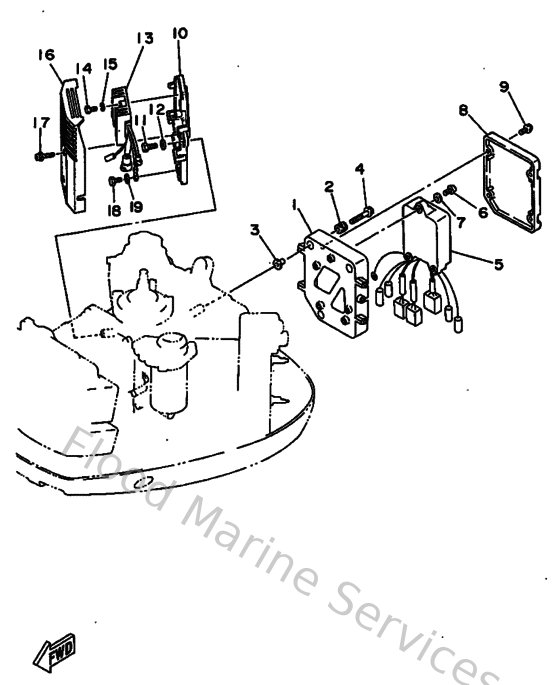

Diagram: Partie Electrique 1

Diagram

Parts List

Reference
Description
Price


1
6N785542018D
Bracket
Loading…

↗
2
6A0823170000
Damper, ignition coil
Loading…

↗
3
624425420000
Collar
Loading…

↗
4
9011906M5900
Bolt, with washer
Loading…

↗
5
6N7855400100
C.d.i. unit assembly
Loading…

↗
6
985800602000
Screw pan head
Loading…

↗
7
929900660000
Washer, plain (646)
Loading…

↗
8
6N7855370000
Cover
Loading…

↗
9
9015906M1100
Screw, with washer(6l2)
Loading…

↗
10
6N7819480094
Bracket
Loading…

↗
11
970950601600
Bolt, hexagon deep recess
Loading…

↗
13
6R3819601000
Rectifier & regulator assembly
Loading…

↗
14
970950602500
Bolt
Loading…

↗
16
6R3819420000
Cover
Loading…

↗
17
9015906M0800
Screw, with washer(6k7)
Loading…

↗
18
970130601200
Bolt(gh1)
Loading…

↗
