Yamaha Outboard Parts - Partie Electrique 1 - L250AETO (1997) | Flood Marine

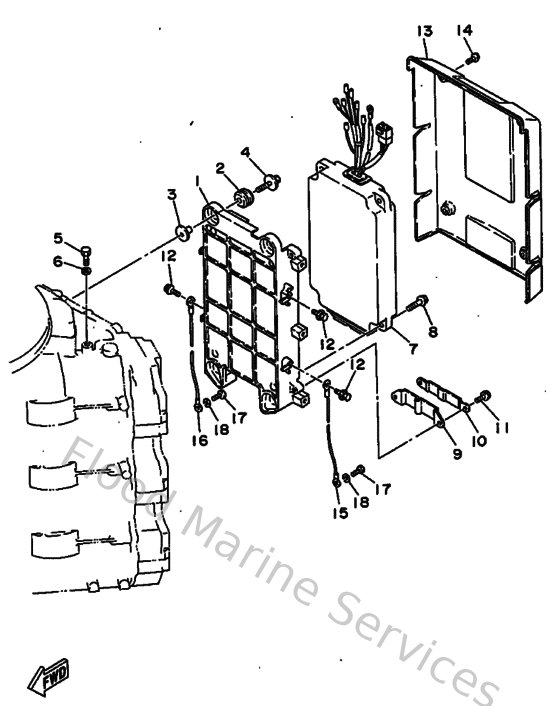

Diagram: Partie Electrique 1

Diagram

Parts List

Reference
Description
Price


1
61A855420194
Bracket
Loading…

↗
2
9048009M1200
Grommet (6a0)
Loading…

↗
3
9038706M0300
Collar (676)
Loading…

↗
4
9011906M2800
Bolt, With Washer
Loading…

↗
5
970950601600
Bolt, hexagon deep recess
Loading…

↗
6
929900660000
Washer, plain (646)
Loading…

↗
7
62J855400100
C.d.i. Unit Assembly
Loading…

↗
8
975130652500
Bolt, with washer(61b)
Loading…

↗
9
61A855480000
Holder
Loading…

↗
10
61A855250000
Cover
Loading…

↗
11
9011906M4100
Bolt, with washer(6r6)
Loading…

↗
12
975130651400
Bolt, With Washer
Loading…

↗
13
61A855370000
Cover
Loading…

↗
14
9015906M0300
Screw (6g5)
Loading…

↗
15
6R3825190000
Wire, earth lead
Loading…

↗
16
6G0825190000
Wire, earth lead
Loading…

↗
17
970130601200
Bolt(gh1)
Loading…

↗
18
929950610000
Washer(6a1)
Loading…

↗
