115BETO (1997)
Partie Electrique 2

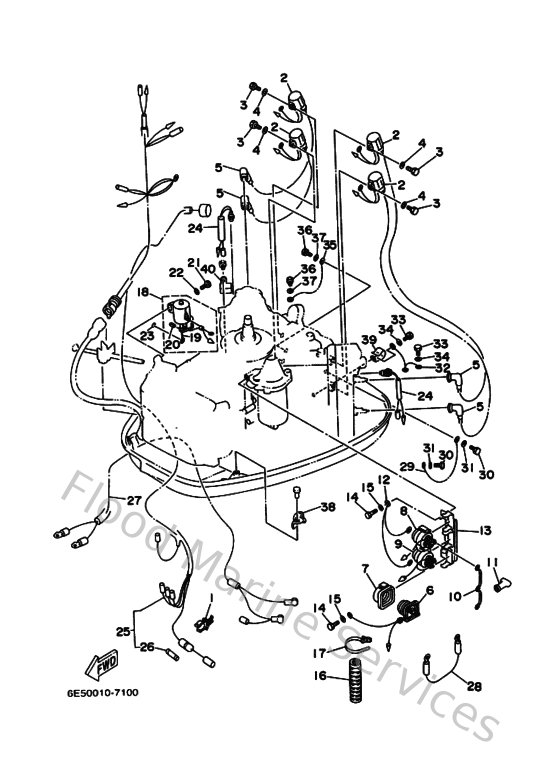

Diagram: Partie Electrique 2
Parts List
Reference
Description
Price
1
6G5821520000
Holder, fuse
Loading…
↗
2
6R3855700100
Ignition coil assembly
Loading…
↗
3
970950602000
Bolt(7u8)
Loading…
↗
4
929900660000
Washer, plain (646)
Loading…
↗
5
6G1823702100
Plug cap assembly
Loading…
↗
6
61A819410000
Starter relay assembly
Loading…
↗
7
689819521000
Holder, starter relay
Loading…
↗
8
6E5819500000
Relay assembly
Loading…
↗
9
6E58195A0000
Relay assembly
Loading…
↗
10
6G5871491000
Connector
Loading…
↗
11
6G5821190000
Cover, lead wire
Loading…
↗
12
6E5821160000
Wire, minus lead
Loading…
↗
13
6E5819482200
Bracket
Loading…
↗
14
970950601600
Bolt, hexagon deep recess
Loading…
↗
16
6N7835570000
Tube
Loading…
↗
17
9046513M3600
Clamp(6h4)
Loading…
↗
18
6E5861100200
Solenoid
Loading…
↗
19
6E5861160100
Wire, pull
Loading…
↗
20
916903001000
Pin, spring (663)
Loading…
↗
23
932100326100
O-ring (663)
Loading…
↗
24
688825601000
Thermo switch assembly
Loading…
↗
26
682821510100
Fuse
Loading…
↗
27
6E5821051200
Battery cable
Loading…
↗
28
6E5821170000
Wire, lead
Loading…
↗
29
6R3825190000
Wire, earth lead
Loading…
↗
30
970800601200
Bolt(gh1)
Loading…
↗
32
6E5825310000
Wire, lead
Loading…
↗
33
970950601200
Bolt(gh1)
Loading…
↗
35
662825190000
Wire, earth lead
Loading…
↗
38
9046512M2500
Clamp (6e5)
Loading…
↗
39
9046508M3300
Clamp(6t4)
Loading…
↗
40
9046510M1400
Clamp
Loading…
↗
