Yamaha Outboard Parts - Partie Electrique 2 - 150AETOL (1998) | Flood Marine

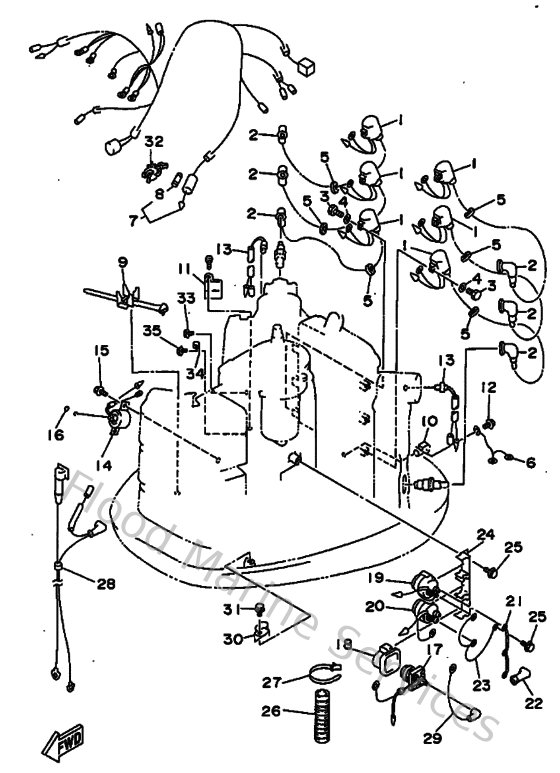

Diagram: Partie Electrique 2

Diagram

Parts List

Reference
Description
Price


1
6R3855700100
Ignition coil assembly
Loading…

↗
2
6E3823702000
Plug cap assembly
Loading…

↗
3
970950602000
Bolt(7u8)
Loading…

↗
4
929900660000
Washer, plain (646)
Loading…

↗
5
904802516100
Grommet(656)
Loading…

↗
6
6E5825310000
Wire, lead
Loading…

↗
7
6G6825900000
Wire Harness Assembly
Loading…

↗
8
688821510000
Fuse
Loading…

↗
9
688825940000
Clamp
Loading…

↗
10
9046508M3300
Clamp(6t4)
Loading…

↗
11
9046510M1400
Clamp
Loading…

↗
12
975950651200
Bolt, hexagon w/w deep recess
Loading…

↗
13
688825601000
Thermo switch assembly
Loading…

↗
14
64D861100000
Solenoid
Loading…

↗
15
9011906M4100
Bolt, with washer(6r6)
Loading…

↗
16
932100326100
O-ring (663)
Loading…

↗
17
61A819410000
Starter relay assembly
Loading…

↗
18
689819521000
Holder, starter relay
Loading…

↗
19
6E5819500100
Relay assembly
Loading…

↗
20
6E58195A0000
Relay assembly
Loading…

↗
21
6G5871491000
Connector
Loading…

↗
22
6G5821190000
Cover, lead wire
Loading…

↗
23
6E5821160000
Wire, minus lead
Loading…

↗
24
6G5819481100
Bracket
Loading…

↗
25
975950651600
Bolt, with washer(6r6)
Loading…

↗
26
6E9835577000
Tube
Loading…

↗
27
9046513M3000
Clamp
Loading…

↗
28
6G5821050200
Battery cable
Loading…

↗
29
6E5821170000
Wire, lead
Loading…

↗
30
9046512M2500
Clamp (6e5)
Loading…

↗
31
970800601200
Bolt(gh1)
Loading…

↗
32
6G5821520000
Holder, fuse
Loading…

↗
33
975130651200
Bolt, with washer(6g4)
Loading…

↗
34
9046508M0700
Clamp (1e6)
Loading…

↗
