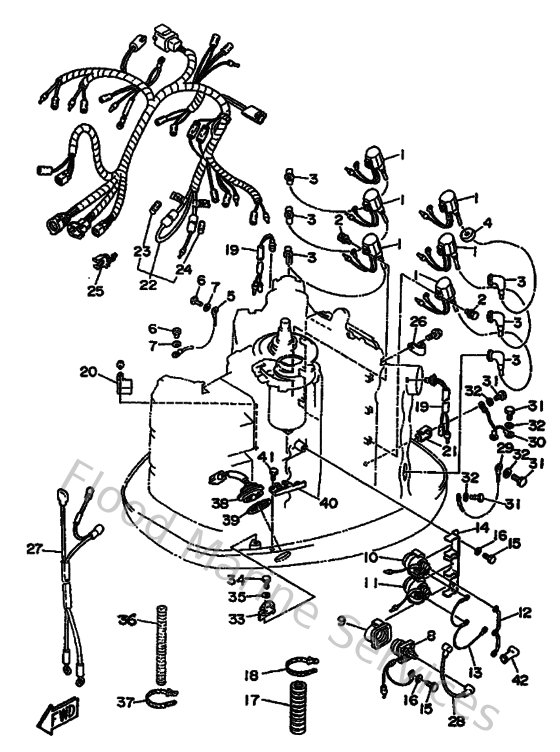

Diagram: Partie Electrique 2

Diagram

Parts List

Reference
Description
Price


1
6R3855700100
Ignition coil assembly
Loading…

↗
2
975950652000
Bolt(7u8)
Loading…

↗
3
6E3823702000
Plug cap assembly
Loading…

↗
4
904802516100
Grommet(656)
Loading…

↗
5
662825190000
Wire, earth lead
Loading…

↗
6
970950601200
Bolt(gh1)
Loading…

↗
7
929900660000
Washer, plain (646)
Loading…

↗
8
61A819410000
Starter relay assembly
Loading…

↗
9
689819521000
Holder, starter relay
Loading…

↗
10
6E5819500100
Relay assembly
Loading…

↗
11
6E58195A0000
Relay assembly
Loading…

↗
12
6G5871491000
Connector
Loading…

↗
13
6E5821160000
Wire, minus lead
Loading…

↗
14
6G5819481100
Bracket
Loading…

↗
15
970950601600
Bolt, hexagon deep recess
Loading…

↗
18
9046513M3600
Clamp(6h4)
Loading…

↗
19
688825601000
Thermo switch assembly
Loading…

↗
20
9046508M3300
Clamp(6t4)
Loading…

↗
21
9046510M1400
Clamp
Loading…

↗
23
682821510100
Fuse
Loading…

↗
24
705821510000
Fuse (30a)
Loading…

↗
25
6G5821520000
Holder, fuse
Loading…

↗
26
904650802800
Clamp (1e6)
Loading…

↗
28
6K7821170000
Wire, lead
Loading…

↗
29
6R3825190000
Wire, earth lead
Loading…

↗
30
6E5825310000
Wire, lead
Loading…

↗
33
9046512M2500
Clamp (6e5)
Loading…

↗
38
6R3825630100
Trim & tilt switch assembly
Loading…

↗
39
6E5825870000
Gasket
Loading…

↗
40
6R3836140000
Bracket
Loading…

↗
42
6G5821190000
Cover, lead wire
