55BM (1996)
Partie Electrique 2

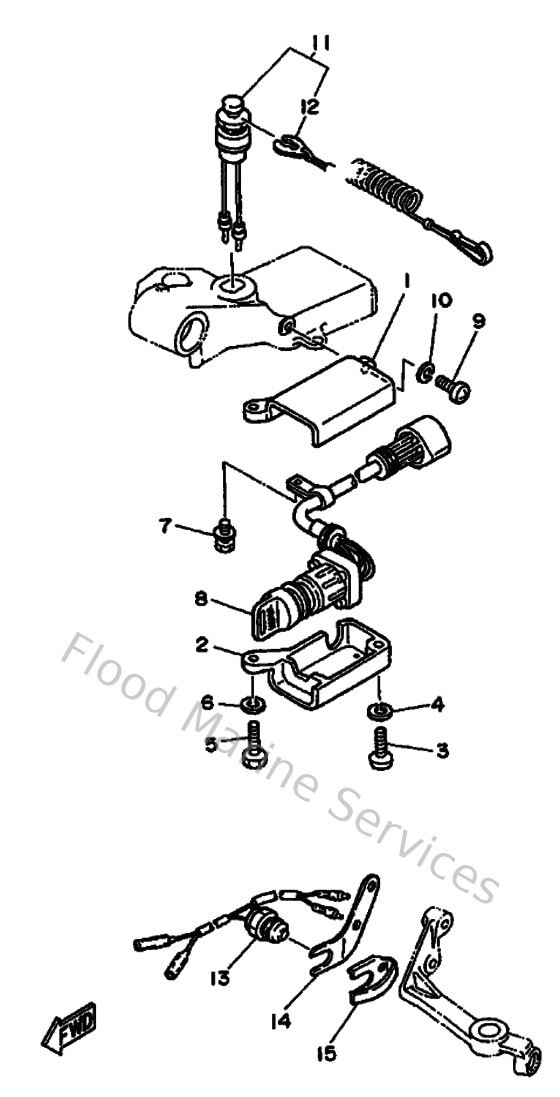

Diagram: Partie Electrique 2
Parts List
Reference
Description
Price
1
6978252E004D
Main Switch Comp
Loading…
↗
2
6978252F004D
Cover, Main Switch 2
Loading…
↗
3
985800602500
Screw, pan head(6b0)
Loading…
↗
4
929950610000
Washer(6a1)
Loading…
↗
5
970950603000
Bolt(jf7)
Loading…
↗
7
975950642000
Bolt(7u8)
Loading…
↗
8
6H3825100300
Main switch assembly
Loading…
↗
9
985800601200
Screw, pan head(62j)
Loading…
↗
11
688825750200
Engine stop switch assembly
Loading…
↗
12
682825560000
Lanyard, stop switch
Loading…
↗
13
697825400100
Neutral Switch Assembly
Loading…
↗
14
663825540100
Stay, neutral switch
Loading…
↗
15
663825550100
Plate
Loading…
↗
