85AET (1997)
Partie Electrique 2

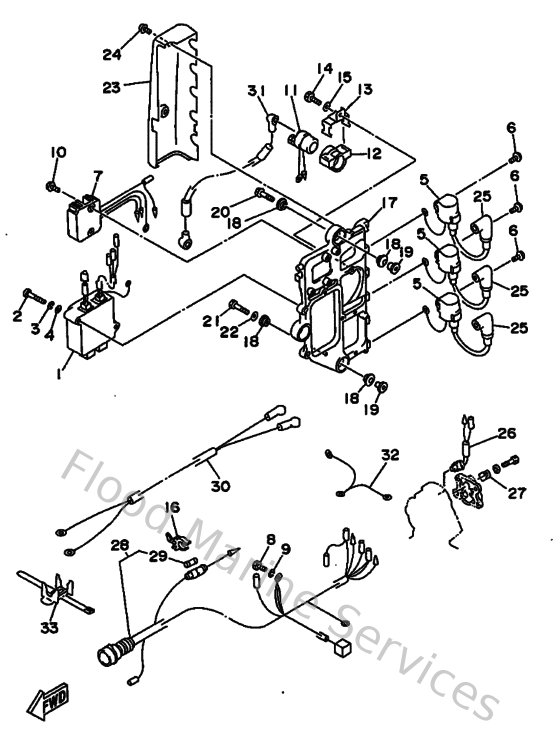

Diagram: Partie Electrique 2
Parts List
Reference
Description
Price
1
688855400000
C.d.i. unit assembly
Loading…
↗
2
985800654000
Screw pan head
Loading…
↗
3
929950610000
Washer(6a1)
Loading…
↗
4
929900660000
Washer, plain (646)
Loading…
↗
5
697855700000
Ignition coil assembly
Loading…
↗
6
975950652000
Bolt(7u8)
Loading…
↗
7
6H0819600000
Rectifier & regulator assembly
Loading…
↗
8
970950601200
Bolt(gh1)
Loading…
↗
11
6G1819411000
Starter relay
Loading…
↗
12
6G1819520000
Holder, relay
Loading…
↗
13
6E9819457000
Plate, switch fitting
Loading…
↗
14
970950601600
Bolt, hexagon deep recess
Loading…
↗
16
6G5821520000
Holder, fuse
Loading…
↗
17
6H1855420000
Bracket
Loading…
↗
18
9048009M2500
Grommet(688)
Loading…
↗
19
9038706M0300
Collar (676)
Loading…
↗
20
9011906M7500
Bolt, with washer
Loading…
↗
21
9010906M3900
Bolt(6h0)
Loading…
↗
22
9020106M3100
Washer (6a0)
Loading…
↗
23
6H1819160000
Cover, terminal
Loading…
↗
24
9015906M1100
Screw, with washer(6l2)
Loading…
↗
25
6G1823702100
Plug cap assembly
Loading…
↗
26
688825601000
Thermo switch assembly
Loading…
↗
27
688825880100
Plate
Loading…
↗
28
688825900400
Wire Harness assembly
Loading…
↗
29
682821510100
Fuse
Loading…
↗
30
6H0821050200
Battery cable
Loading…
↗
31
6H0821170000
Wire, lead
Loading…
↗
32
697825190000
Wire,earth lead
Loading…
↗
33
688825940000
Clamp
