L130BETOL (1994)
Partie Electrique 2

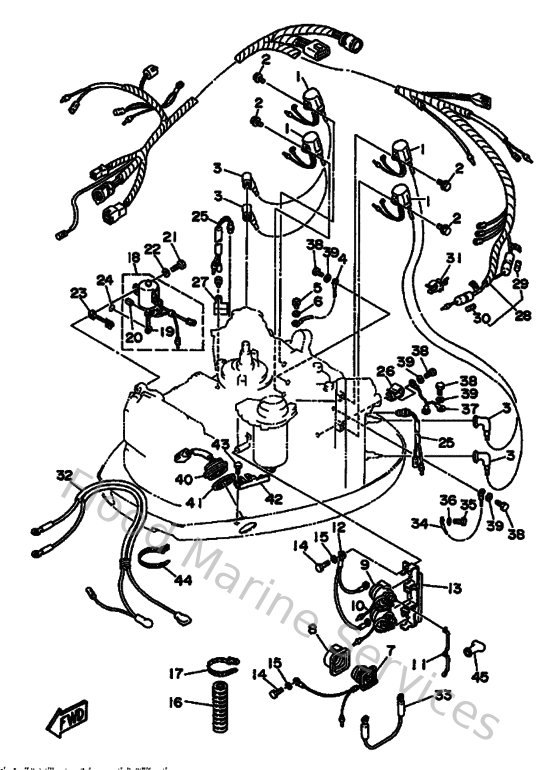

Diagram: Partie Electrique 2
Parts List
Reference
Description
Price
1
6R3855700100
Ignition coil assembly
Loading…
↗
2
975950652000
Bolt(7u8)
Loading…
↗
3
6G1823702000
Plug cap assembly
Loading…
↗
4
662825190000
Wire, earth lead
Loading…
↗
5
970800601200
Bolt(gh1)
Loading…
↗
7
61A819410000
Starter relay assembly
Loading…
↗
8
689819521000
Holder, starter relay
Loading…
↗
9
6E5819500000
Relay assembly
Loading…
↗
10
6E58195A0000
Relay assembly
Loading…
↗
11
6G5871491000
Connector
Loading…
↗
12
6E5821160000
Wire, minus lead
Loading…
↗
13
6E5819482200
Bracket
Loading…
↗
15
929900660000
Washer, plain (646)
Loading…
↗
16
6N7835570000
Tube
Loading…
↗
17
9046513M3600
Clamp(6h4)
Loading…
↗
18
6N7861100000
Solenoid
Loading…
↗
19
6N7861160000
Wire, pull
Loading…
↗
20
916093001000
Pin, spring (663)
Loading…
↗
21
970950603000
Bolt(jf7)
Loading…
↗
23
6N7861120000
Stay, solenoid
Loading…
↗
24
932100326100
O-ring (663)
Loading…
↗
25
688825601000
Thermo switch assembly
Loading…
↗
26
9046508M3300
Clamp(6t4)
Loading…
↗
27
9046510M1400
Clamp
Loading…
↗
28
6N7825901400
Wire Harness assembly
Loading…
↗
29
682821510000
Fuse
Loading…
↗
30
705821510000
Fuse (30a)
Loading…
↗
31
6G5821520000
Holder, fuse
Loading…
↗
32
6N7821050000
Battery Cable
Loading…
↗
33
6E5821170000
Wire, lead
Loading…
↗
34
6R3825190000
Wire, earth lead
Loading…
↗
35
970950601200
Bolt(gh1)
Loading…
↗
37
6E5825310000
Wire, lead
Loading…
↗
40
6R3825630000
Trim & tilt switch assembly
Loading…
↗
41
6E5825870000
Gasket
Loading…
↗
42
6R3836140000
Bracket
Loading…
↗
43
970950601600
Bolt, hexagon deep recess
Loading…
↗
45
6G5821190000
Cover, lead wire
Loading…
↗
