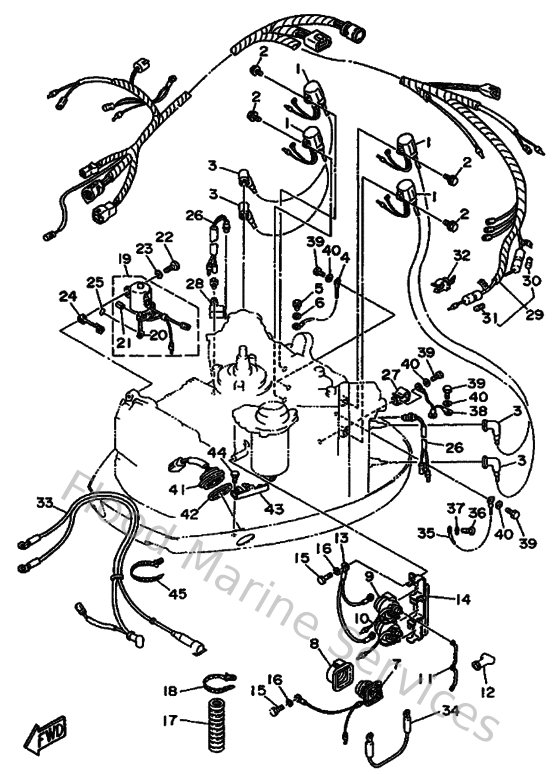

Diagram: Partie Electrique 2

Diagram

Parts List

Reference
Description
Price


1
6R3855700100
Ignition coil assembly
Loading…

↗
3
6G1823702000
Plug cap assembly
Loading…

↗
4
662825190000
Wire, earth lead
Loading…

↗
7
61A819410000
Starter relay assembly
Loading…

↗
8
689819521000
Holder, starter relay
Loading…

↗
9
6E5819500000
Relay assembly
Loading…

↗
10
6E58195A0100
Relay assembly
Loading…

↗
11
6G5871491000
Connector
Loading…

↗
12
6G5821190000
Cover, lead wire
Loading…

↗
13
6E5821160000
Wire, minus lead
Loading…

↗
14
6E5819482200
Bracket
Loading…

↗
17
6N7835570000
Tube
Loading…

↗
19
6N7861100000
Solenoid
Loading…

↗
20
6N7861160000
Wire, pull
Loading…

↗
24
6N7861120000
Stay, solenoid
Loading…

↗
26
688825601000
Thermo switch assembly
Loading…

↗
29
6N7825901400
Wire Harness assembly
Loading…

↗
30
682821510000
Fuse
Loading…

↗
31
705821510000
Fuse (30a)
Loading…

↗
32
6G5821520000
Holder, fuse
Loading…

↗
33
6N7821050200
Battery cable
Loading…

↗
34
6E5821170100
Wire, lead
Loading…

↗
35
6R3825190000
Wire, earth lead
Loading…

↗
38
6E5825310000
Wire, lead
Loading…

↗
41
6R3825630000
Trim & tilt switch assembly
Loading…

↗
42
6E5825870000
Gasket
Loading…

↗
43
6R3836140000
Bracket
