L150CETOL (1994)
Partie Electrique 2

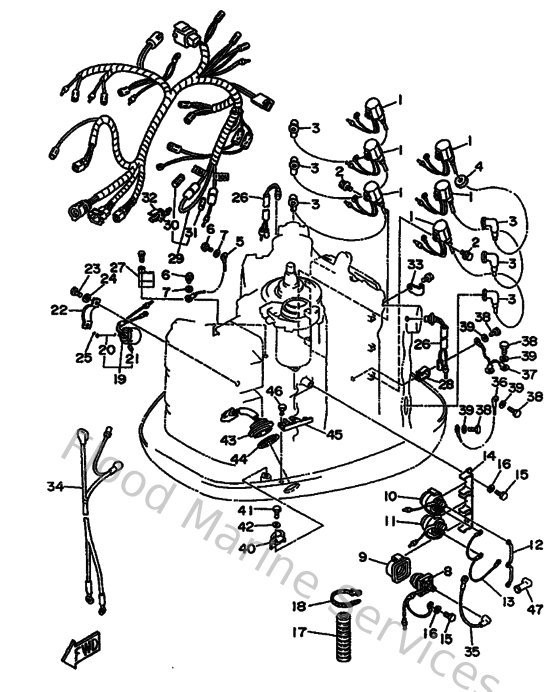

Diagram: Partie Electrique 2
Parts List
Reference
Description
Price
1
6R3855700100
Ignition coil assembly
Loading…
↗
2
975950652000
Bolt(7u8)
Loading…
↗
3
6E3823702000
Plug cap assembly
Loading…
↗
4
904802516100
Grommet(656)
Loading…
↗
5
662825190000
Wire, earth lead
Loading…
↗
6
970800601200
Bolt(gh1)
Loading…
↗
7
929900660000
Washer, plain (646)
Loading…
↗
8
61A819410000
Starter relay assembly
Loading…
↗
9
689819521000
Holder, starter relay
Loading…
↗
10
6E5819500000
Relay assembly
Loading…
↗
11
6E58195A0100
Relay assembly
Loading…
↗
12
6G5871491000
Connector
Loading…
↗
13
6E5821160000
Wire, minus lead
Loading…
↗
14
6G5819481100
Bracket
Loading…
↗
15
970950601600
Bolt, hexagon deep recess
Loading…
↗
17
6N7835570000
Tube
Loading…
↗
18
9046513M3600
Clamp(6h4)
Loading…
↗
19
6G5861100100
Solenoid
Loading…
↗
20
6G5861190000
Wire, Pull
Loading…
↗
21
916903001000
Pin, spring (663)
Loading…
↗
25
932100326100
O-ring (663)
Loading…
↗
26
688825601000
Thermo switch assembly
Loading…
↗
27
9046508M3300
Clamp(6t4)
Loading…
↗
28
9046510M1400
Clamp
Loading…
↗
29
6R3825901300
Wire Harness Assembly
Loading…
↗
30
682821510000
Fuse
Loading…
↗
31
705821510000
Fuse (30a)
Loading…
↗
32
6G5821520000
Holder, fuse
Loading…
↗
33
904650802800
Clamp (1e6)
Loading…
↗
34
6R3821050000
Battery Cable
Loading…
↗
35
6E5821170000
Wire, lead
Loading…
↗
36
6R3825190000
Wire, earth lead
Loading…
↗
37
6E5825311000
Wire, lead
Loading…
↗
38
970950601200
Bolt(gh1)
Loading…
↗
40
9046512M2500
Clamp (6e5)
Loading…
↗
43
6R3825630000
Trim & tilt switch assembly
Loading…
↗
44
6E5825870000
Gasket
Loading…
↗
45
6R3836140000
Bracket
Loading…
↗
47
6G5821190000
Cover, lead wire
Loading…
↗
