Yamaha Outboard Parts - Partie Electrique 3 - 225BETOL (1994) | Flood Marine

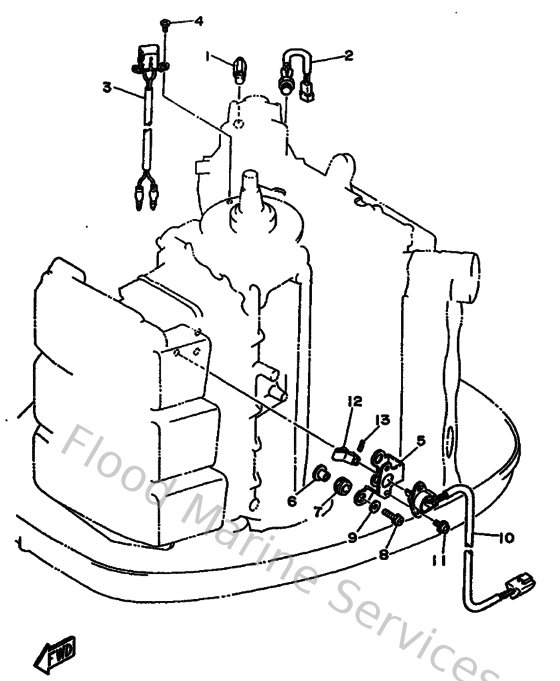

Diagram: Partie Electrique 3

Diagram

Parts List

Reference
Description
Price


1
6G7857800000
Sensor, Knock
Loading…

↗
2
6R5857900000
Thermosensor Assembly
Loading…

↗
3
6R5858950000
Crank position sender
Loading…

↗
4
985800501200
Screw,pan head (646)
Loading…

↗
5
6K7858860000
Bracket
Loading…

↗
6
9038705M0000
Collar(6k7)
Loading…

↗
7
9048010M2300
Grommet(6k7)
Loading…

↗
8
979850532500
Screw, With Washer
Loading…

↗
9
9020105M0300
Washer, plate(6k7)
Loading…

↗
10
6R5858850100
Throttle Sensor Assembly
Loading…

↗
11
979850521200
Screw, with washer(6g7)
Loading…

↗
12
6K7145730000
Lever
Loading…

↗
13
916903001600
Pin, spring
Loading…

↗
