85AET (1995)
Partie Electrique 3

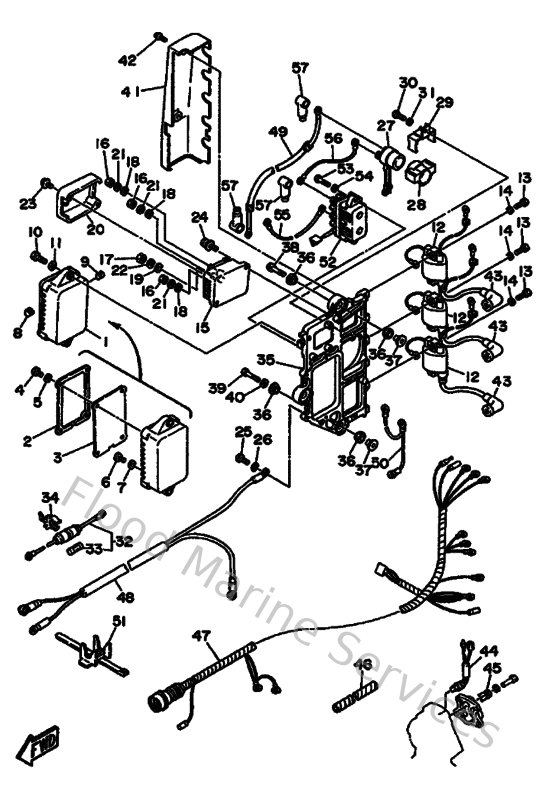

Diagram: Partie Electrique 3
Parts List
Reference
Description
Price
1
688855401600
C.d.i. Unit assembly
Loading…
↗
2
688855371200
Cover
Loading…
↗
3
6E5855471000
Damper
Loading…
↗
4
985800501000
Screw, pan head(62x)
Loading…
↗
5
929900560000
Washer, plain (646)
Loading…
↗
6
985800400800
Screw, pan head (713)
Loading…
↗
7
929900420000
Ybs66-4 washer, plain
Loading…
↗
8
904800615700
Grommet
Loading…
↗
9
663819220000
Grommet
Loading…
↗
10
970950602500
Bolt
Loading…
↗
11
929900660000
Washer, plain (646)
Loading…
↗
12
688855701100
Ignition coil assembly
Loading…
↗
15
6G581960A000
Rectifier & regulator assembly
Loading…
↗
16
953800560000
Nut, hexagon (663)
Loading…
↗
17
953800660000
Nut(661)
Loading…
↗
18
929900520000
Ybs66-5 washer, plain
Loading…
↗
19
929900620000
Ybs66-6 washer, plain
Loading…
↗
20
688819610100
Cover
Loading…
↗
21
929900510000
Ybs67-5 washer, spring
Loading…
↗
22
929950610000
Washer(6a1)
Loading…
↗
24
970800602000
Bolt(7u8)
Loading…
↗
25
970950601200
Bolt(gh1)
Loading…
↗
27
6G1819411000
Starter relay
Loading…
↗
28
6G1819520000
Holder, relay
Loading…
↗
29
6E9819457000
Plate, switch fitting
Loading…
↗
30
970950601600
Bolt, hexagon deep recess
Loading…
↗
32
688821500100
Fuse holder assembly
Loading…
↗
33
682821510000
Fuse
Loading…
↗
34
6G5821520000
Holder, fuse
Loading…
↗
35
6H1855420094
Bracket
Loading…
↗
36
9048009M2500
Grommet(688)
Loading…
↗
37
9038706M0300
Collar (676)
Loading…
↗
38
9011906M5600
Bolt, with washer
Loading…
↗
39
9010906M3900
Bolt(6h0)
Loading…
↗
40
9020106M3100
Washer (6a0)
Loading…
↗
41
6H1819160000
Cover, terminal
Loading…
↗
42
9015906M1100
Screw, with washer(6l2)
Loading…
↗
43
6G1823702000
Plug cap assembly
Loading…
↗
44
688825601000
Thermo switch assembly
Loading…
↗
45
688825880100
Plate
Loading…
↗
46
9044610M0100
Tube (6e5)
Loading…
↗
47
688825901600
Wire Harness Assembly
Loading…
↗
48
688821050200
Battery cable
Loading…
↗
49
6H0821170000
Wire, lead
Loading…
↗
50
697825190000
Wire,earth lead
Loading…
↗
51
688825940000
Clamp
Loading…
↗
52
61A819500000
Relay assembly
Loading…
↗
53
9010106M2700
Bolt
Loading…
↗
55
6H0819491000
Wire, lead
Loading…
↗
56
6H0819490100
Wire, lead
Loading…
↗
57
682821190100
Cover, lead wire
Loading…
↗
