85AET (1995)
Partie Electrique 4

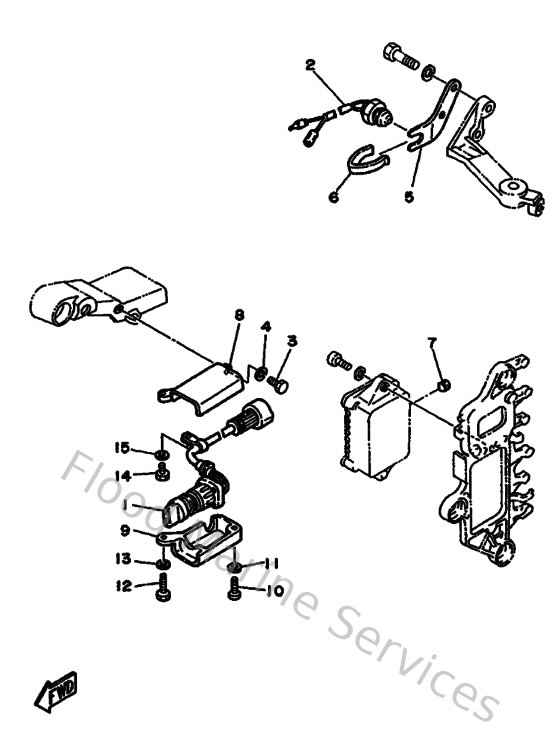

Diagram: Partie Electrique 4
Parts List
Reference
Description
Price
1
6H3825100100
Main switch assembly
Loading…
↗
2
688825401100
Neutral switch assembly
Loading…
↗
3
970800601200
Bolt(gh1)
Loading…
↗
4
929950610000
Washer(6a1)
Loading…
↗
5
663825540100
Stay, neutral switch
Loading…
↗
6
663825550100
Plate
Loading…
↗
7
904800606600
Grommet
Loading…
↗
8
6978252E028D
Cover, main switch 1
Loading…
↗
9
6978252F004D
Cover, Main Switch 2
Loading…
↗
10
985800602500
Screw, pan head(6b0)
Loading…
↗
12
970800603000
Bolt(jf7)
Loading…
↗
14
970950602000
Bolt(7u8)
Loading…
↗
