15DEH (1994)
Pieces Electrique

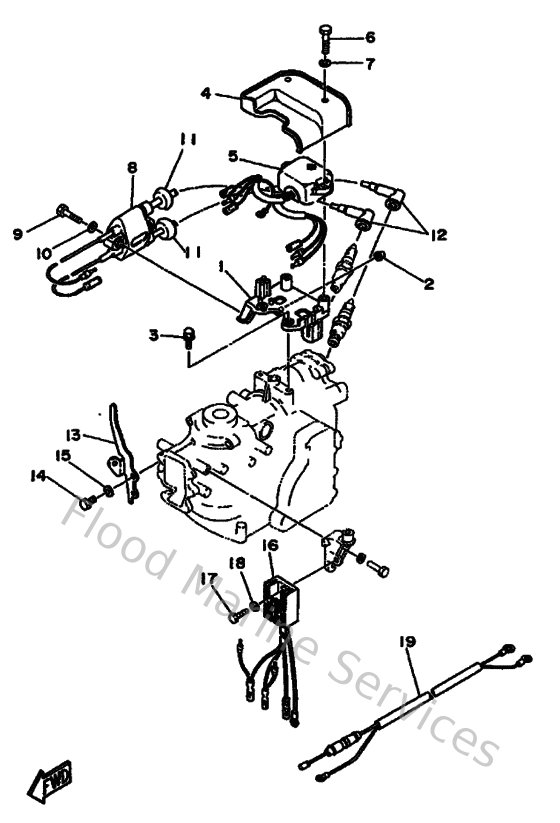

Diagram: Pieces Electrique
Parts List
Reference
Description
Price
1
6E7855420094
Bracket
Loading…
↗
2
6E7823170000
Damper
Loading…
↗
3
975950652000
Bolt(7u8)
Loading…
↗
4
6E7819160000
Cover, Terminal
Loading…
↗
5
695855401200
C.d.i. unit assembly
Loading…
↗
6
970800603000
Bolt(jf7)
Loading…
↗
7
929900620000
Ybs66-6 washer, plain
Loading…
↗
8
6E7855701900
Ignition coil assembly
Loading…
↗
10
929900660000
Washer, plain (646)
Loading…
↗
11
904802516100
Grommet(656)
Loading…
↗
12
6E3823702000
Plug cap assembly
Loading…
↗
13
682813320200
Plate, Timing
Loading…
↗
14
970950601600
Bolt, hexagon deep recess
Loading…
↗
16
6J8819600000
Rectifier & regulator assembly
Loading…
↗
19
6J8821051000
Battery cable
Loading…
↗
