6DMH (1998)
Pieces Electrique

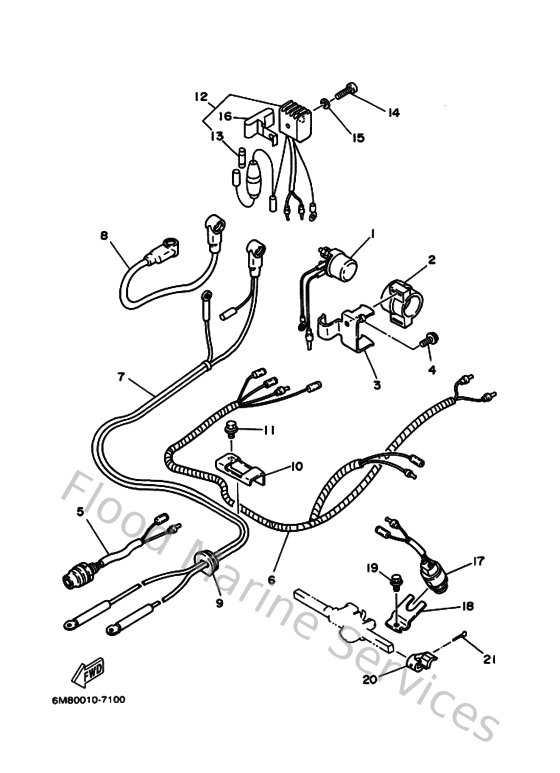

Diagram: Pieces Electrique
Parts List
Reference
Description
Price
1
6G1819411000
Starter relay
Loading…
↗
2
6G1819520000
Holder, relay
Loading…
↗
3
6G1819450000
Plate, Switch Fitting
Loading…
↗
4
958950601600
Bolt, flange deep recess
Loading…
↗
5
689818700000
Starting switch assembly
Loading…
↗
6
6G1825900000
Wire Harness assembly
Loading…
↗
7
6E7821051200
Battery cable
Loading…
↗
8
6G1821170000
Wire, lead
Loading…
↗
9
682427244000
Grommet 1
Loading…
↗
10
6G1823620000
Clamp Cord
Loading…
↗
11
958950601000
Bolt, flange(7ht)
Loading…
↗
12
6G1819706200
Rectifier assembly
Loading…
↗
13
6G1821510000
Fuse (10a)
Loading…
↗
14
978800502500
Screw, panhead (a93)
Loading…
↗
15
929900560000
Washer, plain (646)
Loading…
↗
16
9046508M1900
Clamp
Loading…
↗
17
688825401200
Neutral switch assembly
Loading…
↗
18
6G1825540000
Stay Neutral Switch
Loading…
↗
20
6G1441250000
Lever Shift Rod 2
Loading…
↗
21
914902502000
Pin, cotter
Loading…
↗
