Yamaha Outboard Parts - Power Trim & Tilt - 70BETO (1994) | Flood Marine

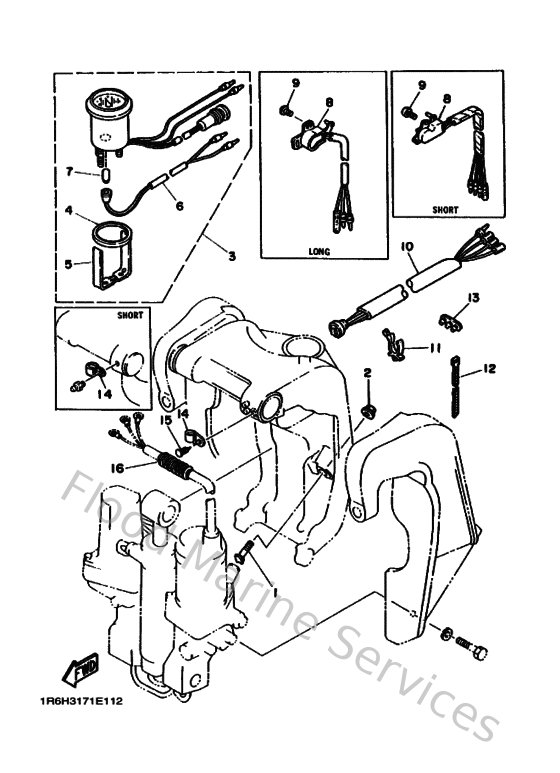

Diagram: Power Trim & Tilt

Diagram

Parts List

Reference
Description
Price


1
688433760100
Bolt, thrust receiver
Loading…

↗
2
957800830000
Nut, nylon (6j8)
Loading…

↗
3
6Y5836701000
Pro Series 11 Trim Meter (Black)
Loading…

↗
4
688836640000
Damper
Loading…

↗
5
6Y5835770000
Plate, fitting
Loading…

↗
6
6Y5835362000
Socket, Meter
Loading…

↗
7
6Y5835180000
Bulb (12v-1.7w) t6.5
Loading…

↗
8
6H5836720000
Trim Sender
Loading…

↗
9
985800601600
Screw pan head
Loading…

↗
10
6E5825531000
Extension, Wire Harness
Loading…

↗
11
9046409M1300
Clamp (6h1)
Loading…

↗
12
904651009800
Clamp
Loading…

↗
13
703821190000
Cover, lead wire
Loading…

↗
14
904650802800
Clamp (1e6)
Loading…

↗
15
9033805M0300
Plug (6h1)
Loading…

↗
16
9044014M0000
Pipe(6h4)
Loading…

↗
