Yamaha Outboard Parts - Power Trim & Tilt Assy - 175AETOL (1989) | Flood Marine

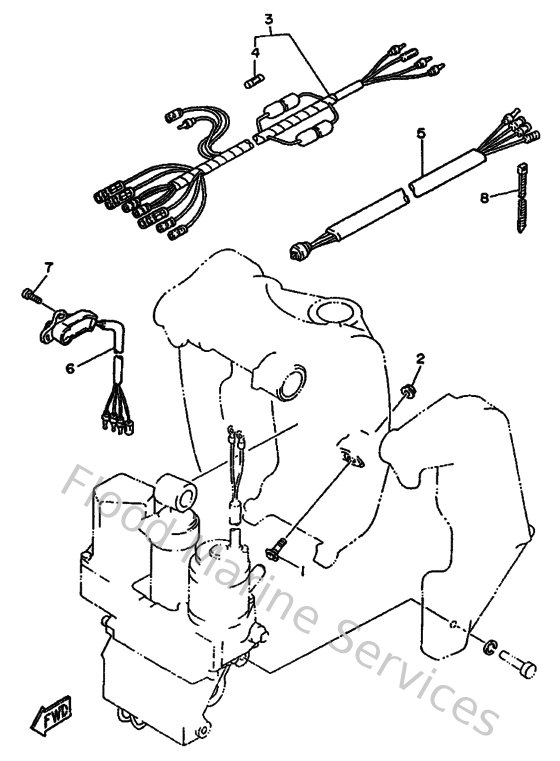

Diagram: Power Trim & Tilt Assy

Diagram

Parts List

Reference
Description
Price


1
6G5433760000
Bolt, Thrust Receiver
Loading…

↗
2
957801030000
Nut, nylon (6e5)
Loading…

↗
3
6Y583553M000
Wire, lead (l=2.5m)
Loading…

↗
4
1E6821510000
Fuse (10a)
Loading…

↗
5
6E5825531000
Extension, Wire Harness
Loading…

↗
6
6R3836720100
Trim sender
Loading…

↗
7
925800601600
Screw pan head
Loading…

↗
8
9046511M1000
Clamp
Loading…

↗
