50GETO (2001)
Power Trim & Tilt Assy

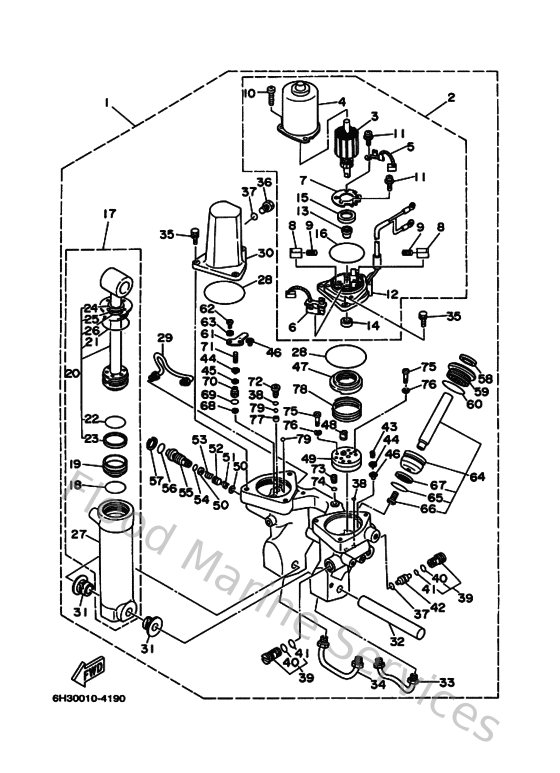

Diagram: Power Trim & Tilt Assy
Parts List
Reference
Description
Price
1
62F43800024D
Power trim & tilt assembly
Loading…
↗
2
6H1438800200
Motor assembly
Loading…
↗
3
6H1438051000
Armature assembly
Loading…
↗
4
6H1438041000
Stator assembly
Loading…
↗
5
6H1438911000
Brush
Loading…
↗
6
6H1438921000
Breaker comp. (brush 2)
Loading…
↗
7
6H14380F1000
Plate, brush holder
Loading…
↗
8
6H14380J1000
Holder, brush
Loading…
↗
9
6H14386K1000
Spring, brush
Loading…
↗
10
978850501600
Screw, pan head(6b0)
Loading…
↗
11
985070401000
Screw, pan head(6g8)
Loading…
↗
12
6H1438811000
Frame, end
Loading…
↗
13
6H14380H1000
Metal
Loading…
↗
14
9310208M4300
Oil seal(6b0)
Loading…
↗
15
6H14380G1000
Plate
Loading…
↗
16
6H1438651000
O-ring
Loading…
↗
17
6H1438401200
Power tilt assembly
Loading…
↗
18
6H1438611000
O-ring
Loading…
↗
19
6H1438141100
Piston, free
Loading…
↗
20
6H1438101100
Tilt piston sub assembly
Loading…
↗
21
6H1438610000
O-ring
Loading…
↗
23
6H1438711000
Ring, back up
Loading…
↗
24
6H1438120000
Seal dast
Loading…
↗
25
6H1438721000
Ring, back up
Loading…
↗
26
932101839700
O-ring (6g5)
Loading…
↗
27
6H1438131000
Cylinder, tilt
Loading…
↗
28
932106448800
93210-64488
Loading…
↗
29
6H1438351000
Pipe
Loading…
↗
30
6H1438281000
Body, reservoir
Loading…
↗
31
9038618M1400
Bushing (6e5)
Loading…
↗
32
6E5438180000
Pin, lower shock mount
Loading…
↗
33
6H1438331000
Pipe
Loading…
↗
34
6H1438340000
Pipe
Loading…
↗
35
975950642000
Bolt(7u8)
Loading…
↗
36
6H1438290000
Plug, reservoir
Loading…
↗
37
932100935000
O-ring
Loading…
↗
38
93210064A500
O-ring(61a)
Loading…
↗
39
6T4438020300
Valve sub assembly
Loading…
↗
40
6H1438660100
O-ring
Loading…
↗
41
6H1438670000
O-ring
Loading…
↗
42
6H1438411100
Piston, shuttle
Loading…
↗
43
6H1438561000
Spring, down relief
Loading…
↗
44
6H1438441000
Pin, valve support
Loading…
↗
45
6H14384G1100
Seal, relief valve
Loading…
↗
46
6H14384F1000
Seal, main valve
Loading…
↗
47
6H1438170100
Filter 2
Loading…
↗
48
6H1438311000
Connector, shaft
Loading…
↗
49
6H1438301100
Gear pump assembly
Loading…
↗
50
6H1438470000
Seat, manual valve
Loading…
↗
51
6H1438990000
Spring, manual release
Loading…
↗
52
6H14382A1000
Adaptor 1
Loading…
↗
53
6H1438540000
Spring, manual release
Loading…
↗
54
9321010M7400
O-ring
Loading…
↗
55
6H1438450000
Screw, manual release
Loading…
↗
56
9321018M7500
O-ring (6e5)
Loading…
↗
57
6H1438750000
Ring, snap
Loading…
↗
58
6H1438221000
Seal, trim dust
Loading…
↗
59
6H1438211100
Screw, trim cylinder end
Loading…
↗
61
6H14384E2000
Spring, trim
Loading…
↗
62
978850501000
Screw, pan head(62x)
Loading…
↗
63
929010520000
Ybs66-5 washer, plain
Loading…
↗
64
6H1438201100
Piston sub assembly
Loading…
↗
65
6H1438640000
O-ring
Loading…
↗
66
913170801600
Bolt, socket
Loading…
↗
67
6H1438740000
Ring, back up
Loading…
↗
68
6H1438160000
Filter 1
Loading…
↗
69
6H1438960000
O-ring (2h7)
Loading…
↗
70
6H1438951200
Seat, relief valve
Loading…
↗
71
62F438550000
Spring, up relief
Loading…
↗
72
6H1438431100
Screw, valve lock
Loading…
↗
73
6H14388E1100
Plug, tapper screw
Loading…
↗
74
6H1438680000
O-ring
Loading…
↗
75
985170402500
Screw, pan head
Loading…
↗
76
929010410000
Ybs67-4 washer, spring
Loading…
↗
77
6H14387J0000
Washer, special 2
Loading…
↗
78
6H14385H0000
Spring, seal
Loading…
↗
79
935053203800
Ball(7fk)
Loading…
↗
