Yamaha Outboard Parts - Power Trim & Tilt Assy - 60FETO (1987) | Flood Marine

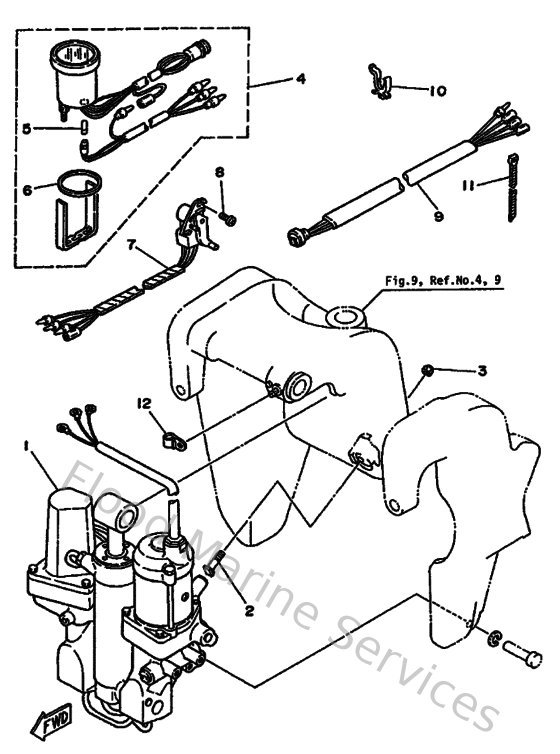

Diagram: Power Trim & Tilt Assy

Diagram

Parts List

Reference
Description
Price


2
688433760100
Bolt, thrust receiver
Loading…

↗
3
901850805700
Nut, nylon (6j8)
Loading…

↗
4
6Y5836700000
Trim Meter assembly
Loading…

↗
5
3FV835170000
Bulb (12v-1.7w) t6.5
Loading…

↗
6
688836640000
Damper
Loading…

↗
7
6E5836720100
Trim sender
Loading…

↗
8
985800601600
Screw pan head
Loading…

↗
9
6E5825531000
Extension, Wire Harness
Loading…

↗
10
9046415M0800
Clamp (6h1)
Loading…

↗
11
9046511M1000
Clamp
Loading…

↗
12
9046508M0700
Clamp (1e6)
Loading…

↗
