70BETO (1988)
Power Trim & Tilt Assy

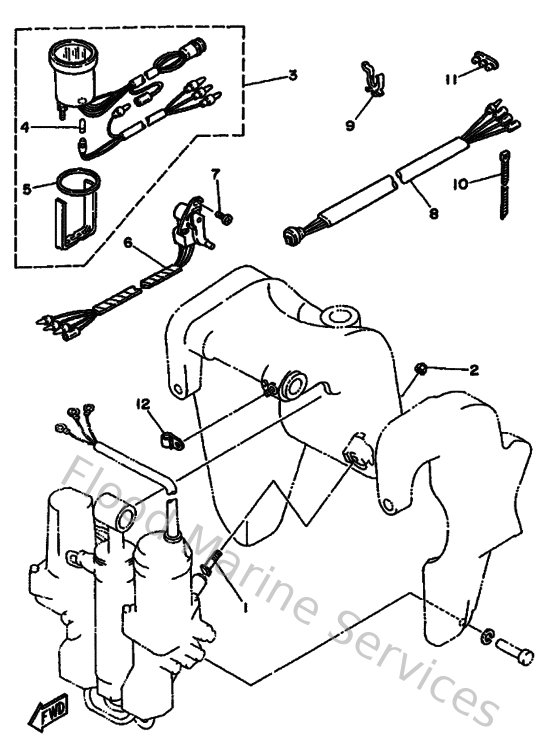

Diagram: Power Trim & Tilt Assy
Parts List
Reference
Description
Price
1
688433760100
Bolt, thrust receiver
Loading…
↗
2
901850805700
Nut, nylon (6j8)
Loading…
↗
3
6Y5836700100
Trim Meter
Loading…
↗
4
3FV835170000
Bulb (12v-1.7w) t6.5
Loading…
↗
5
688836640000
Damper
Loading…
↗
6
6E5836720100
Trim sender
Loading…
↗
7
985800601600
Screw pan head
Loading…
↗
8
6E5825531000
Extension, Wire Harness
Loading…
↗
9
9046415M0800
Clamp (6h1)
Loading…
↗
10
9046511M1000
Clamp
Loading…
↗
11
703821190000
Cover, lead wire
Loading…
↗
12
904650802800
Clamp (1e6)
Loading…
↗
