Yamaha Outboard Parts - Power Trim & Tilt Assy - 70BETO (1992) | Flood Marine

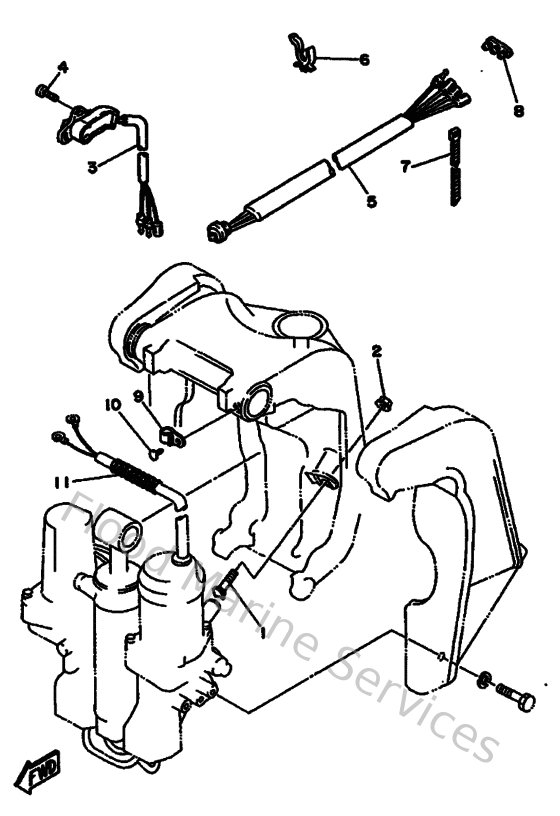

Diagram: Power Trim & Tilt Assy

Diagram

Parts List

Reference
Description
Price


1
688433760100
Bolt, thrust receiver
Loading…

↗
2
957800830000
Nut, nylon (6j8)
Loading…

↗
3
6H1836721000
Trim Sender
Loading…

↗
4
925800601600
Screw pan head
Loading…

↗
5
6E5825531000
Extension, Wire Harness
Loading…

↗
6
9046415M0800
Clamp (6h1)
Loading…

↗
7
9046511M1000
Clamp
Loading…

↗
8
703821190000
Cover, lead wire
Loading…

↗
9
904650802800
Clamp (1e6)
Loading…

↗
10
9033805M0300
Plug (6h1)
Loading…

↗
11
9044014M0000
Pipe(6h4)
Loading…

↗
