F100AET (1999)
Power Trim & Tilt Assy

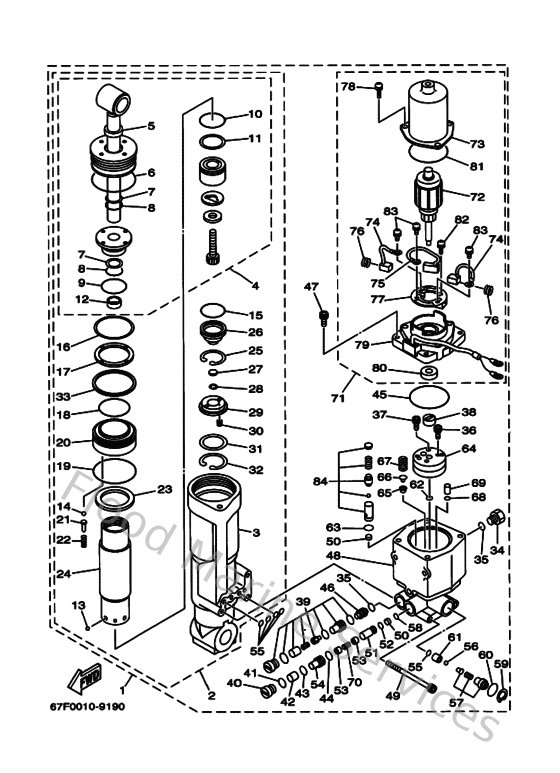

Diagram: Power Trim & Tilt Assy
Parts List
Reference
Description
Price
1
67F43800004D
Power trim & tilt assembly
Loading…
↗
2
67F438400000
Power tilt assembly
Loading…
↗
3
67F4380K0000
Cylinder, tilt sub assembly
Loading…
↗
4
67F438100200
Tilt piston sub assembly
Loading…
↗
5
6H1438120000
Seal dast
Loading…
↗
6
67F438610000
O-ring
Loading…
↗
7
6H1438721000
Ring, back up
Loading…
↗
8
932101839700
O-ring (6g5)
Loading…
↗
9
62X438620000
O-ring
Loading…
↗
10
932102937500
O-ring (j10)
Loading…
↗
11
62X438710000
Ring, back up
Loading…
↗
12
67F4388F0000
Spacer
Loading…
↗
13
935031600300
Ball
Loading…
↗
14
935010800100
Ball
Loading…
↗
16
67F438990000
Plate stopper
Loading…
↗
17
67F438160000
Filter 1
Loading…
↗
18
67F438620000
O-ring
Loading…
↗
19
62X438650000
O-ring
Loading…
↗
20
67F4388A0000
Piston, trim
Loading…
↗
21
67F4386A0000
Pin, Absorber Valve
Loading…
↗
22
67F438570000
Spring, absorber valve
Loading…
↗
23
67F4381J0000
Plate
Loading…
↗
24
67F224710000
Cylinder, shock absorber
Loading…
↗
25
990093550000
Circlip(47y)
Loading…
↗
26
67F438140000
Free piston sub assembly
Loading…
↗
27
6H14384G1100
Seal, relief valve
Loading…
↗
28
61A438750000
Ring, snap
Loading…
↗
29
62X438990000
Plate stopper
Loading…
↗
30
62X4384H0000
Spring
Loading…
↗
31
1UF224340000
Plate, valve 1
Loading…
↗
32
62X438750000
Ring, snap
Loading…
↗
33
67F438710000
Ring, back up
Loading…
↗
34
6H1438290000
Plug, reservoir
Loading…
↗
35
932100935000
O-ring
Loading…
↗
36
913180603500
Bolt,socket
Loading…
↗
37
913170602000
Bolt,socket
Loading…
↗
38
6H1438311000
Connector, shaft
Loading…
↗
39
6T4438020300
Valve sub assembly
Loading…
↗
40
67F4382F0000
Adaptor 3
Loading…
↗
41
6H1438660100
O-ring
Loading…
↗
42
67F438170000
Filter 2
Loading…
↗
43
9321010M7400
O-ring
Loading…
↗
44
6H1438670000
O-ring
Loading…
↗
46
62X438410000
Piston, shuttle
Loading…
↗
47
65W438880000
Bolt, hexagon socket head(1jk)
Loading…
↗
48
67F438250000
Housing, Trim & Tilt
Loading…
↗
49
62X438780000
Bolt, socket
Loading…
↗
50
6H1438160000
Filter 1
Loading…
↗
51
67F438510000
Seat, Relief Valve
Loading…
↗
52
932100700300
O-ring (11m)
Loading…
↗
53
67F438080000
Seat Valve Comp 1
Loading…
↗
54
67F4382G0000
Screw, Valve Seat
Loading…
↗
55
932100651900
O-ring(6h0)
Loading…
↗
56
935053203800
Ball(7fk)
Loading…
↗
57
61A438602000
Manual valve sub-assembly
Loading…
↗
58
932100610000
O-Ring
Loading…
↗
59
6H1438750000
Ring, snap
Loading…
↗
60
932101832200
O-ring (1l9)
Loading…
↗
61
61A438470000
Seat, manual valve
Loading…
↗
62
65W438620000
O-ring
Loading…
↗
63
932101136800
O-ring (2h7)
Loading…
↗
64
67F438300000
Gear Pump assembly
Loading…
↗
65
6H14384F1000
Seal, main valve
Loading…
↗
66
6H1438441000
Pin, valve support
Loading…
↗
67
6H1438561000
Spring, down relief
Loading…
↗
68
65W438610000
O-ring
Loading…
↗
69
65W438170000
Filter 2
Loading…
↗
70
67F4385H0000
Spring, Seal
Loading…
↗
71
67F438800000
Motor assembly
Loading…
↗
72
67F438050000
Armature assembly
Loading…
↗
73
67F438040000
Stator assembly
Loading…
↗
74
67F438910000
Brush 1
Loading…
↗
75
67F821810000
Circuit Breaker Comp
Loading…
↗
76
67F4386K0000
Spring, brush
Loading…
↗
77
67F4380F0000
Plate, brush holder
Loading…
↗
78
67F438860000
Bolt
Loading…
↗
79
67F438810000
Frame End
Loading…
↗
80
67F438820000
Oil Seal
Loading…
↗
81
67F438960000
O-ring
Loading…
↗
82
67F438870000
Bolt
Loading…
↗
83
67F438790000
Screw, with washer
Loading…
↗
84
67F438500000
Valve sub assembly
