F100AET (2000)
Power Trim & Tilt Assy 1

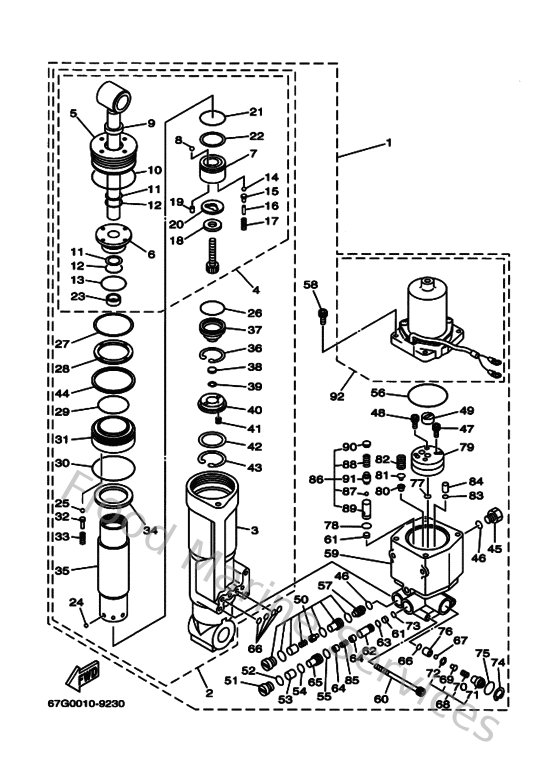

Diagram: Power Trim & Tilt Assy 1
Parts List
Reference
Description
Price
1
67F43800014D
Power trim & tilt assembly
Loading…
↗
2
67F438400000
Power tilt assembly
Loading…
↗
3
67F4380K0000
Cylinder, tilt sub assembly
Loading…
↗
4
67F438100000
Tilt piston sub assembly
Loading…
↗
5
67F438210900
Screw, trim cylinder end
Loading…
↗
6
67F438110000
Cylinder end sub assembly
Loading…
↗
7
67F4385A0000
Piston, tilt
Loading…
↗
8
935010800100
Ball
Loading…
↗
9
6H1438120000
Seal dast
Loading…
↗
10
67F438610000
O-ring
Loading…
↗
11
6H1438721000
Ring, back up
Loading…
↗
12
932101839700
O-ring (6g5)
Loading…
↗
13
62X438620000
O-ring
Loading…
↗
15
65W4386A0000
Pin, absorber valve
Loading…
↗
16
6884386F0000
Pin, straight
Loading…
↗
17
65W438530000
Spring, absorber valve
Loading…
↗
18
67F438930000
Washer
Loading…
↗
19
936020724400
Pin, dowel
Loading…
↗
20
67F224350000
Plate, valve 2
Loading…
↗
21
932102937500
O-ring (j10)
Loading…
↗
22
62X438710000
Ring, back up
Loading…
↗
23
67F4388F0000
Spacer
Loading…
↗
24
935031600300
Ball
Loading…
↗
27
67F438990000
Plate stopper
Loading…
↗
28
67F438160000
Filter 1
Loading…
↗
29
67F438620000
O-ring
Loading…
↗
30
62X438650000
O-ring
Loading…
↗
31
67F4388A0900
PISTON, TRIM
Loading…
↗
32
67F4386A0000
Pin, Absorber Valve
Loading…
↗
33
67F438570000
Spring, absorber valve
Loading…
↗
34
67F4381J0000
Plate
Loading…
↗
35
67F224710100
Cylinder, shock absorber
Loading…
↗
36
67F438750000
Ring, snap
Loading…
↗
37
67F4381B0000
Free piston sub assembly
Loading…
↗
38
6H14384G1100
Seal, relief valve
Loading…
↗
39
61A438750000
Ring, snap
Loading…
↗
40
62X438990000
Plate stopper
Loading…
↗
41
62X4384H0000
Spring
Loading…
↗
42
1UF224340000
Plate, valve 1
Loading…
↗
43
62X438750000
Ring, snap
Loading…
↗
44
67F438710000
Ring, back up
Loading…
↗
45
6H1438290000
Plug, reservoir
Loading…
↗
46
932100916500
O-ring
Loading…
↗
47
9011006X7900
Bolt, hexagon socket head(m01)
Loading…
↗
48
913180602000
Bolt,socket
Loading…
↗
49
6H1438311000
Connector, shaft
Loading…
↗
50
6T4438020300
Valve sub assembly
Loading…
↗
51
67F4382F0000
Adaptor 3
Loading…
↗
52
6H1438660100
O-ring
Loading…
↗
53
67F438170000
Filter 2
Loading…
↗
54
9321010M7400
O-ring
Loading…
↗
55
6H1438670000
O-ring
Loading…
↗
57
62X438410000
Piston, shuttle
Loading…
↗
58
65W438880000
Bolt, hexagon socket head(1jk)
Loading…
↗
59
67F438250000
Housing, Trim & Tilt
Loading…
↗
60
62X438780000
Bolt, socket
Loading…
↗
61
6H1438160000
Filter 1
Loading…
↗
62
67F438510000
Seat, Relief Valve
Loading…
↗
63
932100700300
O-ring (11m)
Loading…
↗
64
67F438080000
Seat Valve Comp 1
Loading…
↗
65
67F4382G0000
Screw, Valve Seat
Loading…
↗
66
93210064A500
O-ring(61a)
Loading…
↗
67
935053203800
Ball(7fk)
Loading…
↗
68
61A438602000
Manual valve sub-assembly
Loading…
↗
69
61A438480000
Rod, manual release
Loading…
↗
70
61A438540000
Spring, manual release
Loading…
↗
71
61A438450000
Screw, manual release
Loading…
↗
73
932100610000
O-Ring
Loading…
↗
74
6H1438750000
Ring, snap
Loading…
↗
75
932101832200
O-ring (1l9)
Loading…
↗
76
61A438470000
Seat, manual valve
Loading…
↗
77
65W438620000
O-ring
Loading…
↗
78
932101136800
O-ring (2h7)
Loading…
↗
79
67F438300000
Gear Pump assembly
Loading…
↗
80
6H14384F1000
Seal, main valve
Loading…
↗
81
6H1438441000
Pin, valve support
Loading…
↗
82
6H1438561000
Spring, down relief
Loading…
↗
83
65W438610000
O-ring
Loading…
↗
84
65W438170000
Filter 2
Loading…
↗
85
67F4385H0000
Spring, Seal
Loading…
↗
86
67F438500000
Valve sub assembly
Loading…
↗
89
67F438950000
Seat, Relief Valve
Loading…
↗
90
67F438430000
Screw, valve lock
Loading…
↗
92
67F438800000
Motor assembly
Loading…
↗
