30DMHO (2006)
REMO CON ATTACHMENT

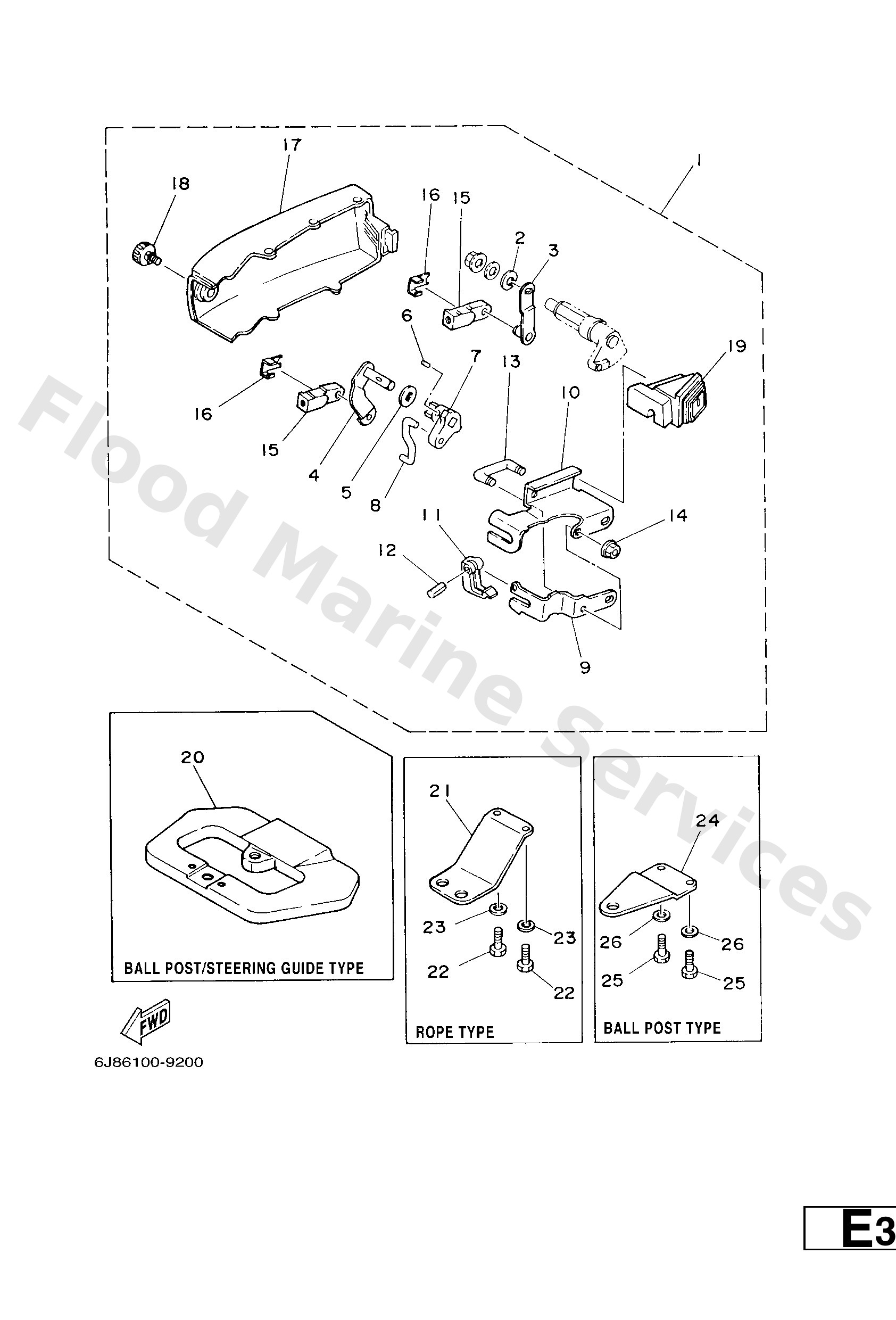

Diagram: REMO CON ATTACHMENT
Parts List
Reference
Description
Price
1
6J84850111
AP
Attachment kit
Loading…
↗
1
6J848501034D
AP
Remocon attachment assembly
Loading…
↗
2
9299008100
Ybs67-8 washer, spring
Loading…
↗
3
6J84853400
Throttle lever, control
Loading…
↗
4
6J84854401
Lever, shiftcontrol
Loading…
↗
5
6J84417700
Washer
Loading…
↗
6
9025403M03
Pin, spring
Loading…
↗
7
6J84417302
Lever, shift control
Loading…
↗
8
6J84216901
Joint
Loading…
↗
9
6J84853100
Bracket, remote control
Loading…
↗
10
6J84853200
Bracket, remote control 2
Loading…
↗
11
6824853850
Clamp, cable
Loading…
↗
12
9169030012
Pin, spring
Loading…
↗
13
9010906M29
Bolt(6j8)
Loading…
↗
14
9017906M24
Nut(6j8)
Loading…
↗
15
6G82636300
End, wire 1
Loading…
↗
16
6G82636400
End, wire 2
Loading…
↗
17
6J84272351
Cover, bottom (dbn:gray)
Loading…
↗
18
6J84284600
Screw
Loading…
↗
19
6J84272410
Grommet
Loading…
↗
20
6J848511014D
AP
Hook, steering
Loading…
↗
21
6G84851100
AP ROPE TYPE
Hook, steering
Loading…
↗
22
9709506016
AP
Bolt, hexagon deep recess
Loading…
↗
23
9299506600
AP
Washer, plain (646)
Loading…
↗
24
6G84851110
AP BALL POST TYPE
Hook, steering
Loading…
↗
