F15CE (2025)
REMO CON ATTACHMENT

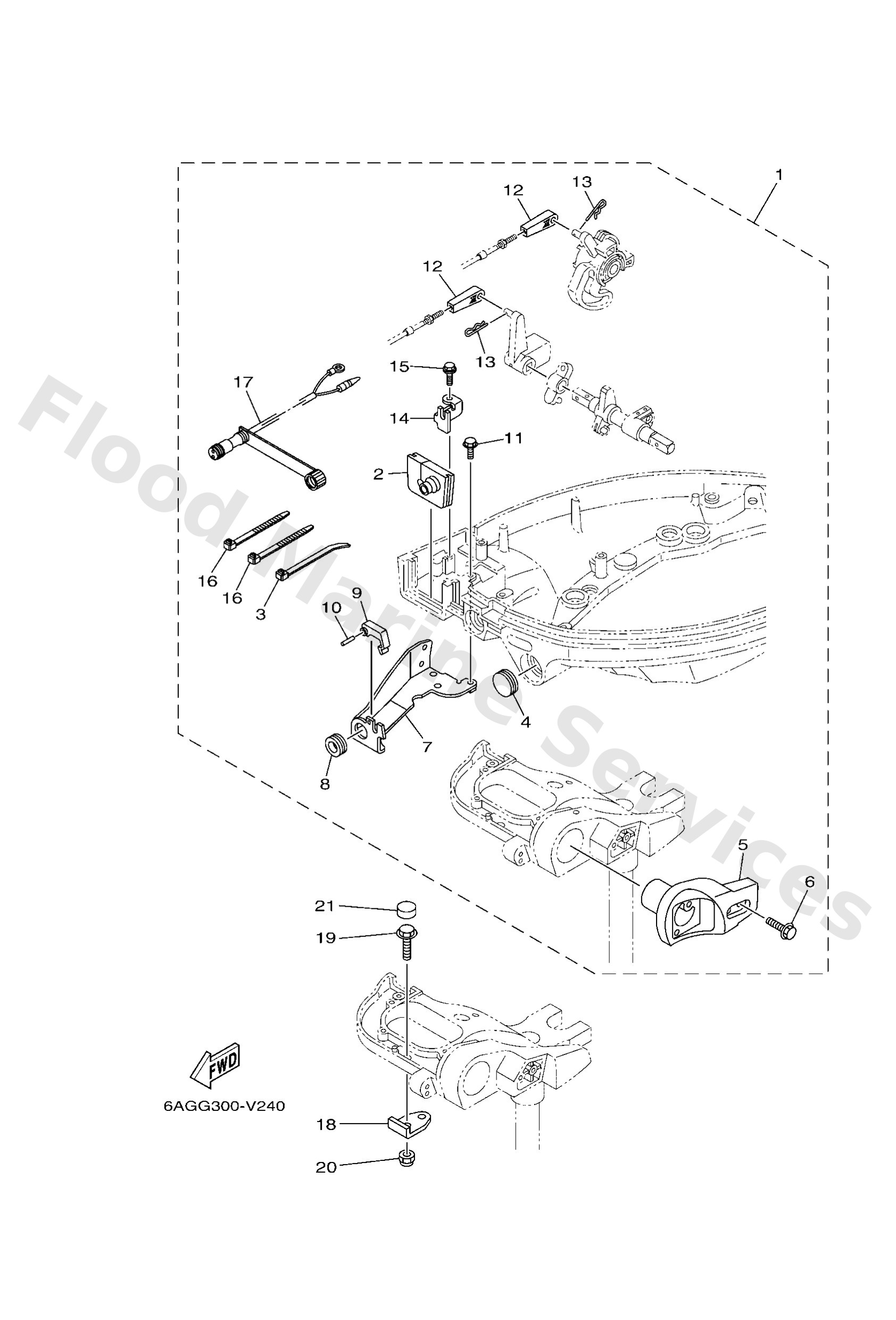

Diagram: REMO CON ATTACHMENT
Parts List
Reference
Description
Price
1
6AH4850102
AP
Remote cont. attachment assembly.
Loading…
↗
2
6AH4272411
Grommet
Loading…
↗
3
9046511M10
Clamp
Loading…
↗
4
65W4272611
Grommet
Loading…
↗
5
6AH8377300
Bracket, switch
Loading…
↗
6
97E9506530
Bolt, hexagon w/w deep recess
Loading…
↗
7
6AH4853200
Bracket, remote control 2
Loading…
↗
8
9048019031
Grommet(75v)
Loading…
↗
9
6824853850
Clamp, cable
Loading…
↗
10
9169030012
Pin, spring
Loading…
↗
11
97E9506514
Bolt, hexagon w/w deep recess
Loading…
↗
12
6FM4834400
Cable end, remote control
Loading…
↗
13
9046818008
Clip 620436610000
Loading…
↗
14
6AH4853100
Bracket, remote control 1
Loading…
↗
15
9010906M86
Bolt
Loading…
↗
16
9046513M18
Clamp
Loading…
↗
17
6D58434001
Socket cord assembly 1
Loading…
↗
18
6AH4851101
AP
Hook, steering
Loading…
↗
19
97E9508525
AP
Bolt, hexagon w/w deep recess
Loading…
↗
20
9018508057
AP
Nut, nylon (6j8)
Loading…
↗
21
6AH4419400
AP
Cap
Loading…
↗
